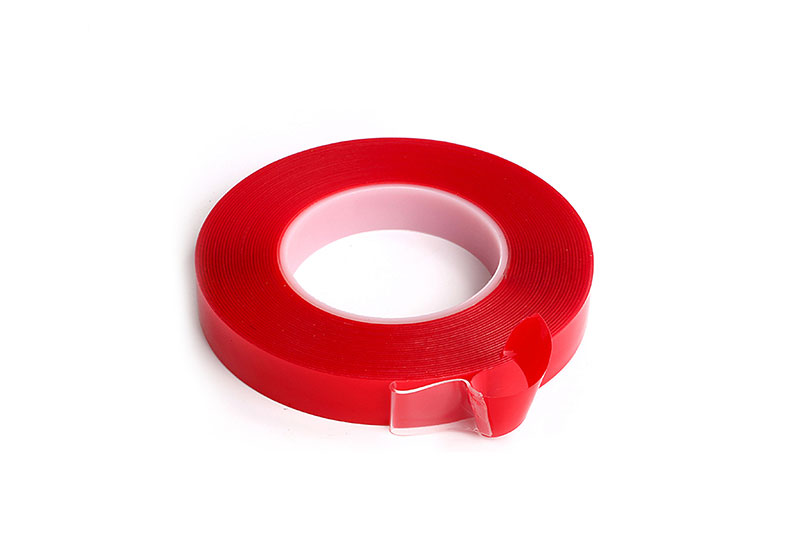

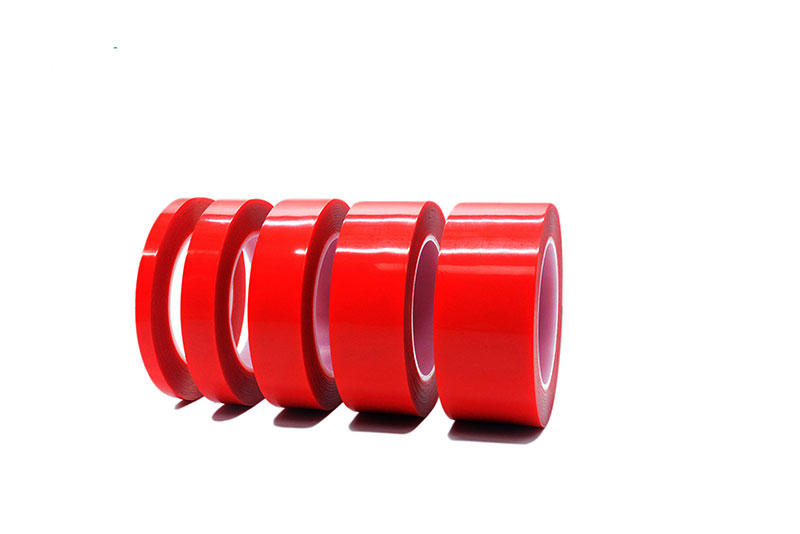

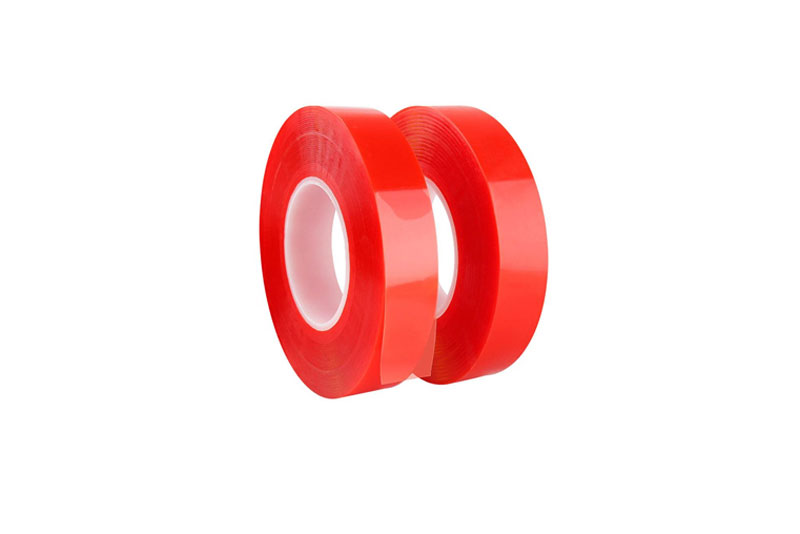

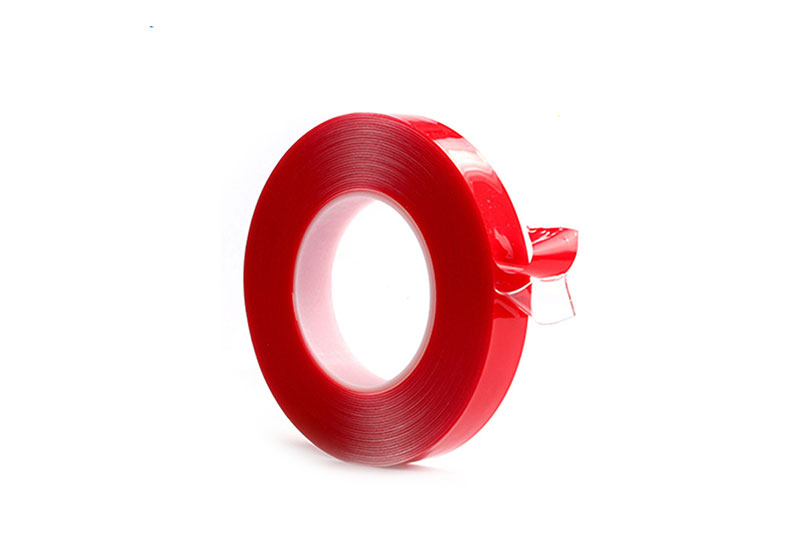

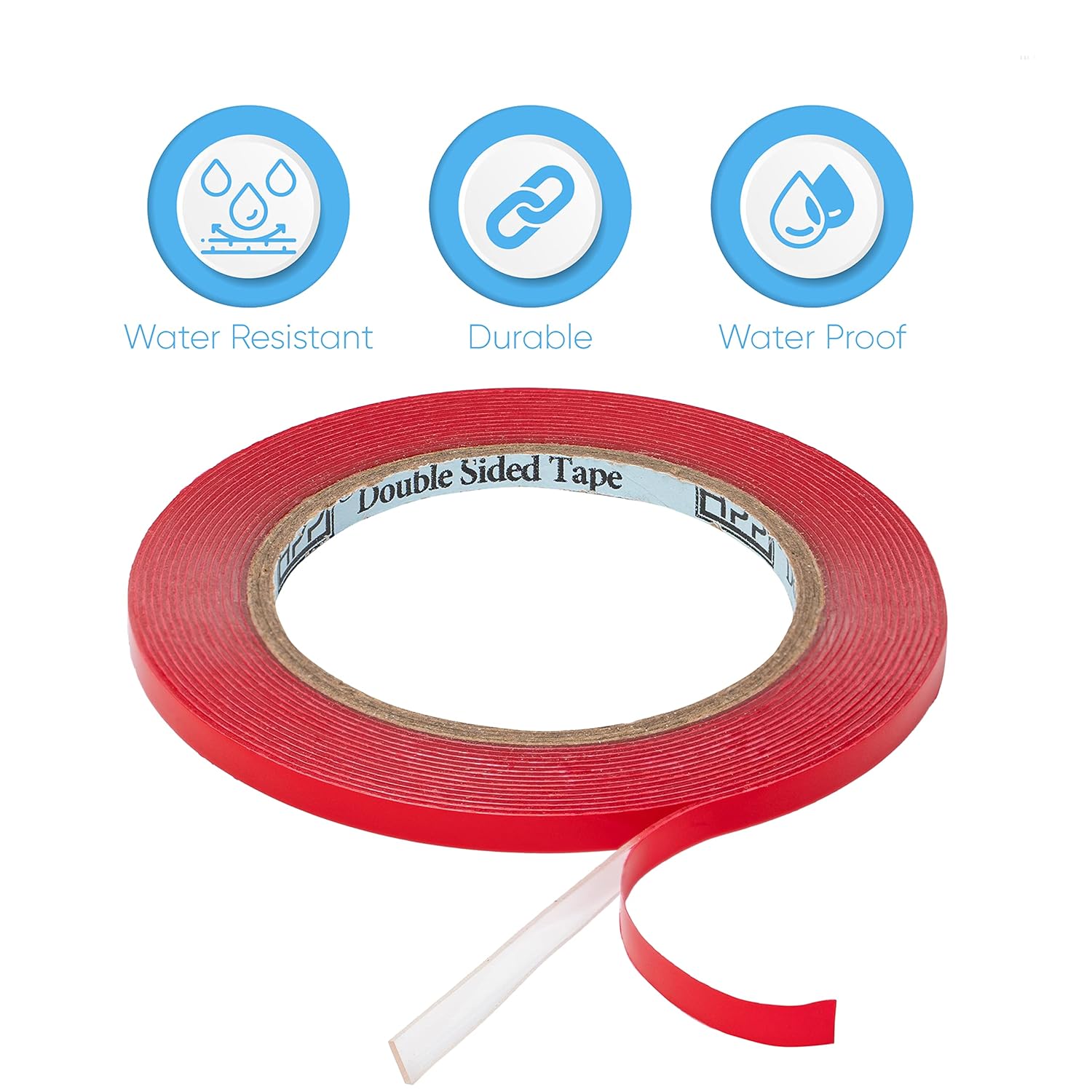

VHB double-sided tape
Inquiry NowDescription

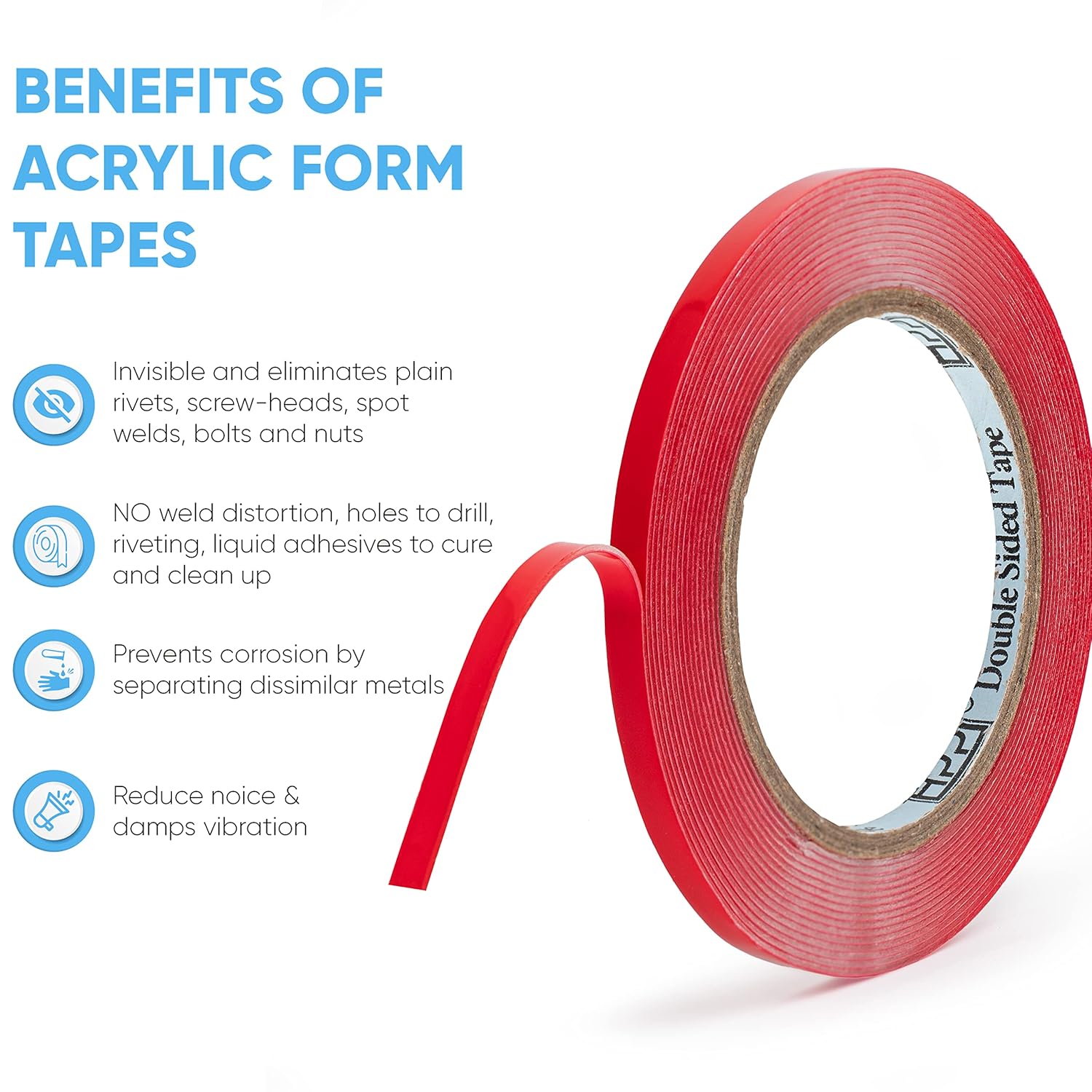

Features: The most professional double-sided tape, very good joint filling effect, isolating moisture, dust and chemical substances; Very good durability and weather ability; Anti–knocking/aging, reducing noise. Good adhesion and Cold/heat resistance to plastic and metal material, also powder coating (For example: UV surface powder coating) and some hard adhesive surface.
Usage: For Computer/ Mobile phone / Communication/household appliance / audiovisual / car and other products. Should be choose base on products and environment, computer frame' s adhesion, LED tube, LED module light, LCD module sheet' adhesion, component' s fastening, gasket adhesion, nameplate/foam/ Mylar' s adhesion, fixing lead–free technology flexible circuit board in high temperature. Pure adhesive film has good adhesion & filling to rough surface and curved surface. Also with heat–resistance, moisture–proof, anti–solvent type and other features.
|
Mode No |
Thickness(mm) |
Color |
Size （cm） |
Adhesive Base |
Temperature Resistance |
Solvent Resistance |
Release Force |
Tensile Strength |
Hold Force |
Equivalent |
|
HY980-1 |
0.64 |
Black |
900*33 |
High Strength Acrylic
|
≥120℃ |
High |
≥4000 |
≥7500 |
＞24hr |
4939/5925 |
|
HY980-2 |
0.5 |
Transparent |
≥3500 |
≥7500 |
4905 |
|||||
|
HY980-3 |
1 |
≥4000 |
≥6500 |
4910 |
||||||
|
HY980-4 |
1.5 |
≥4000 |
≥6000 |
4915 |
||||||
|
HY980-5 |
2 |
≥4000 |
≥5500 |
4918 |
||||||
|
HY980-6 |
0.25 |
Grey |
≥3500 |
≥8500 |
4216/5355 |
|||||
|
HY980-7 |
0.4 |
≥3500 |
≥8500 |
4215/4926 |
||||||
|
HY980-8 |
0.8 |
≥4000 |
≥7000 |
4213/4229 |
||||||
|
HY980-9 |
1.2 |
≥4500 |
≥6500 |
4941/4611/4211/5344 |
||||||
|
HY980-10 |
1.5 |
≥4500 |
≥6000 |
4956/5356 |
||||||
|
HY980-11 |
2 |
≥4500 |
≥5500 |
4620/4991 |
||||||
|
HY980-12 |
0.25 |
White |
≥3500 |
≥8500 |
4914 |
|||||
|
HY980-13 |
0.4 |
≥4000 |
≥8000 |
4920 |
||||||
|
HY980-14 |
0.64 |
≥4000 |
≥8000 |
4932/4930/4618 |
||||||
|
HY980-15 |
0.8 |
≥4000 |
≥7500 |
4647/4253 |
||||||
|
HY980-16 |
1.2 |
≥4000 |
≥7000 |
4945/4950/4951 |
||||||
|
HY980-17 |
1.5 |
≥4000 |
≥6500 |
4624 |
||||||
|
HY980-18 |
2 |
≥4000 |
≥6500 |
4912/4955 |
||||||
|
HY980-19 |
3 |
≥4000 |
≥5000 |
4959/5359 |
