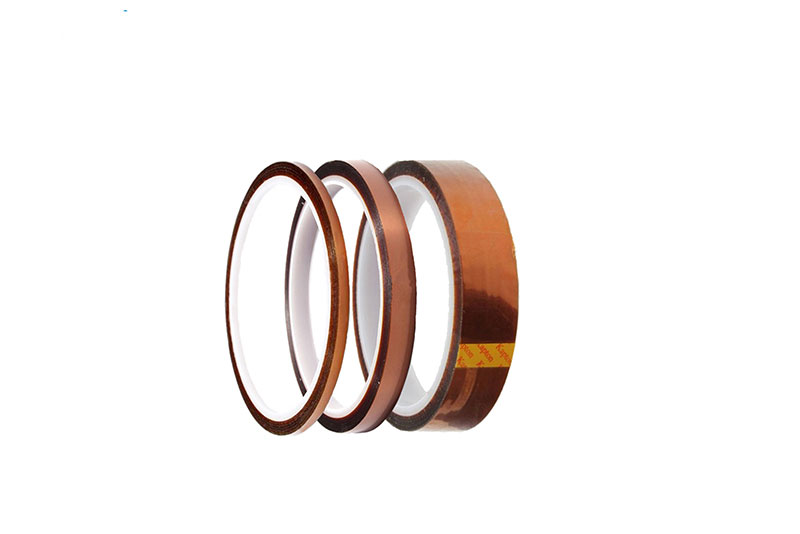

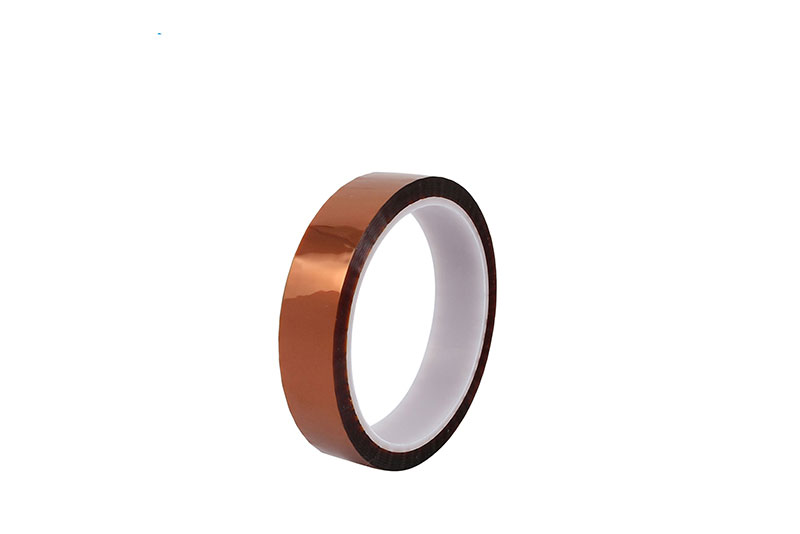

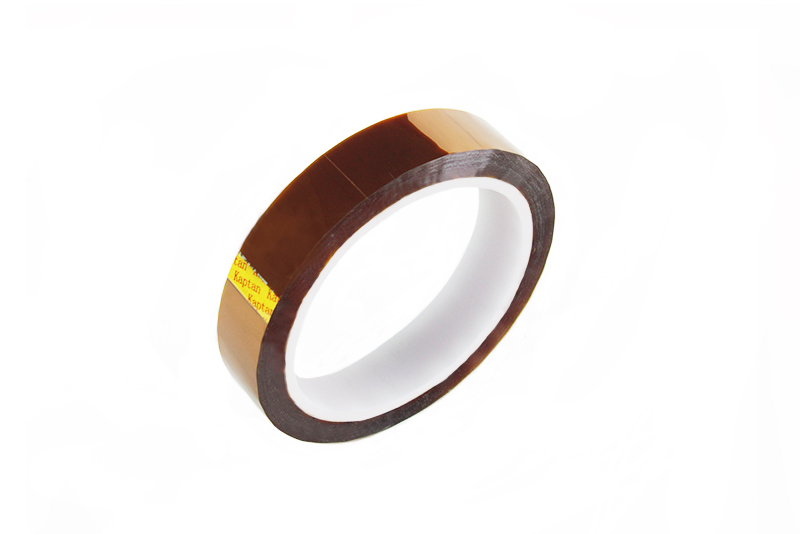

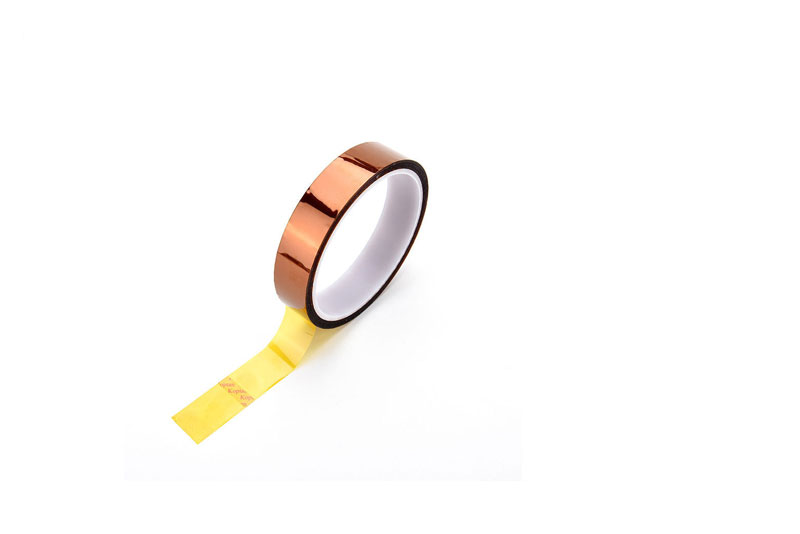

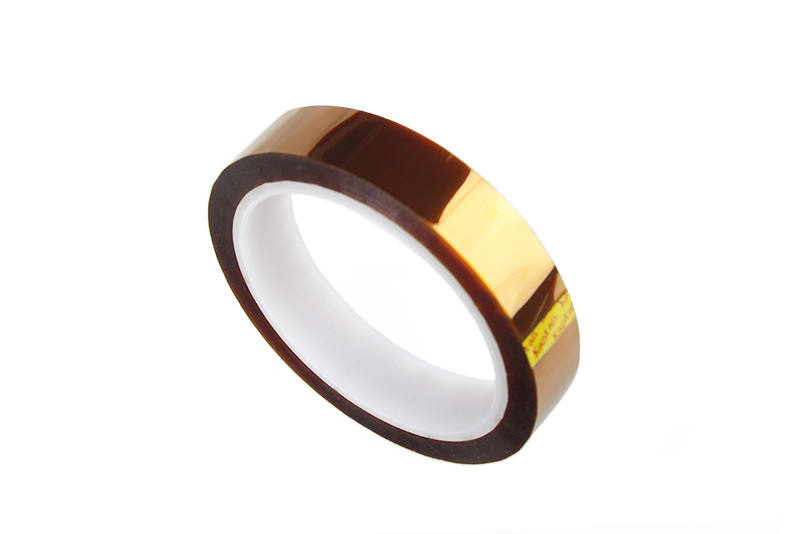

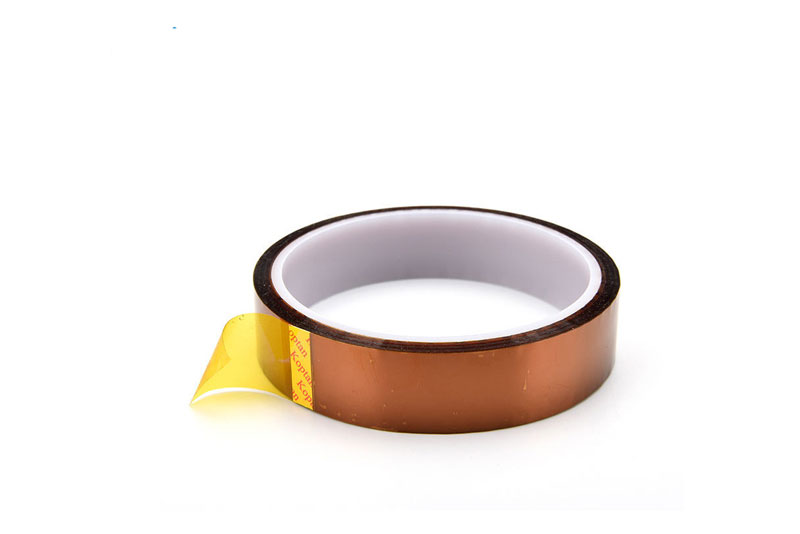

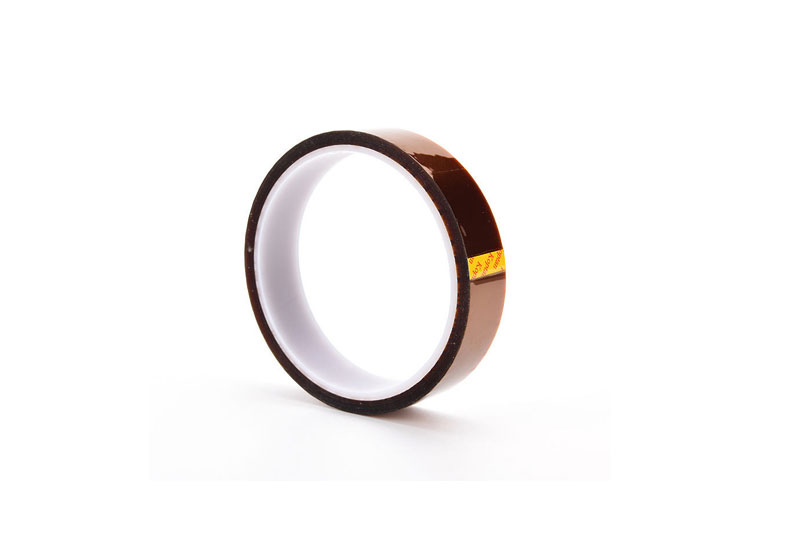

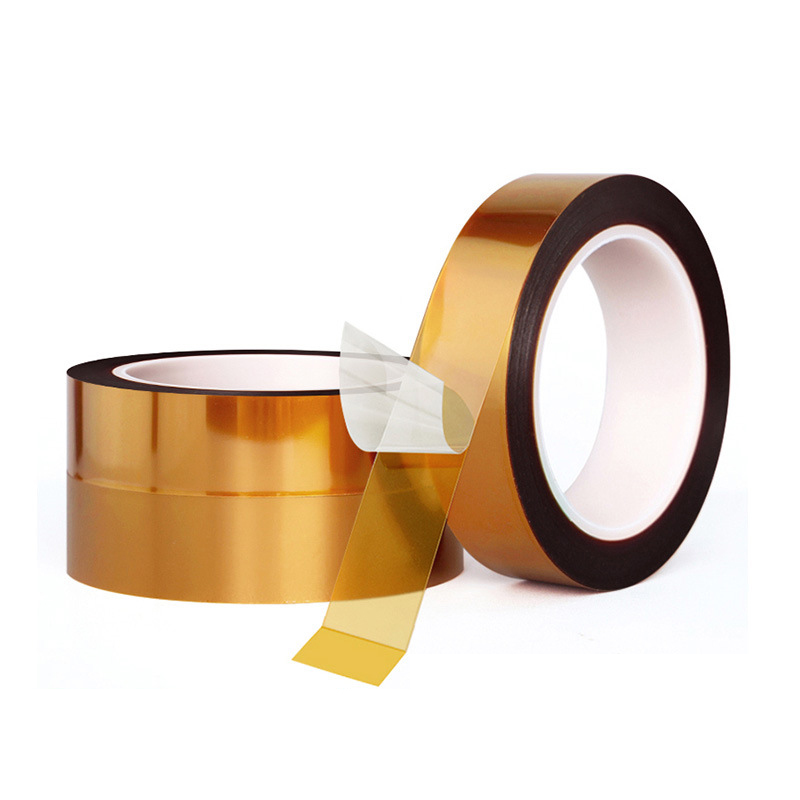

Polyimide tape
Inquiry NowDescription

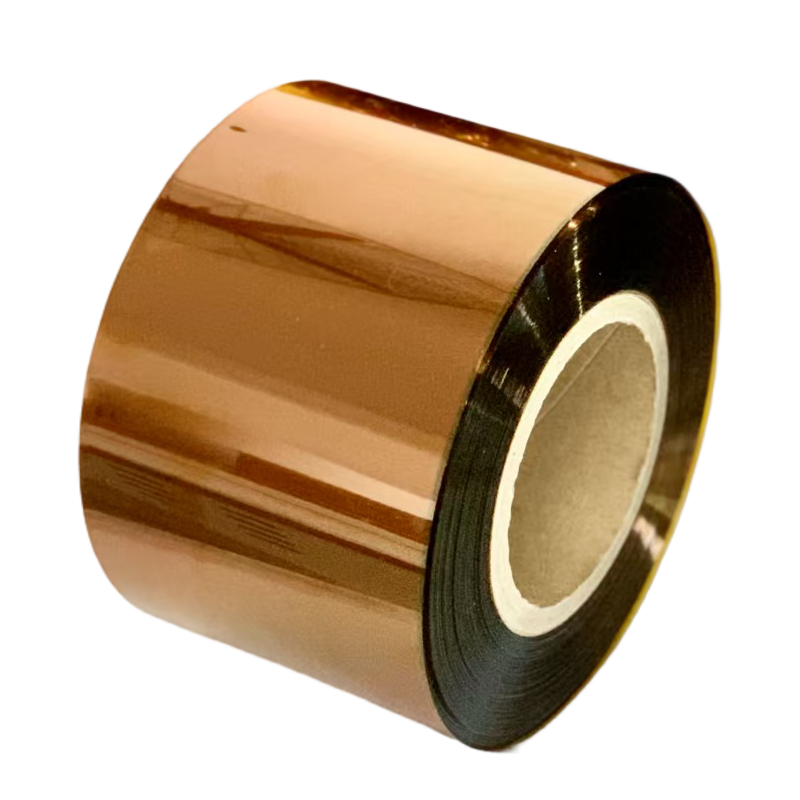

Color: heat resistance silicone,Amber(black is customized), Roll core can be made as 76mm and 38mm

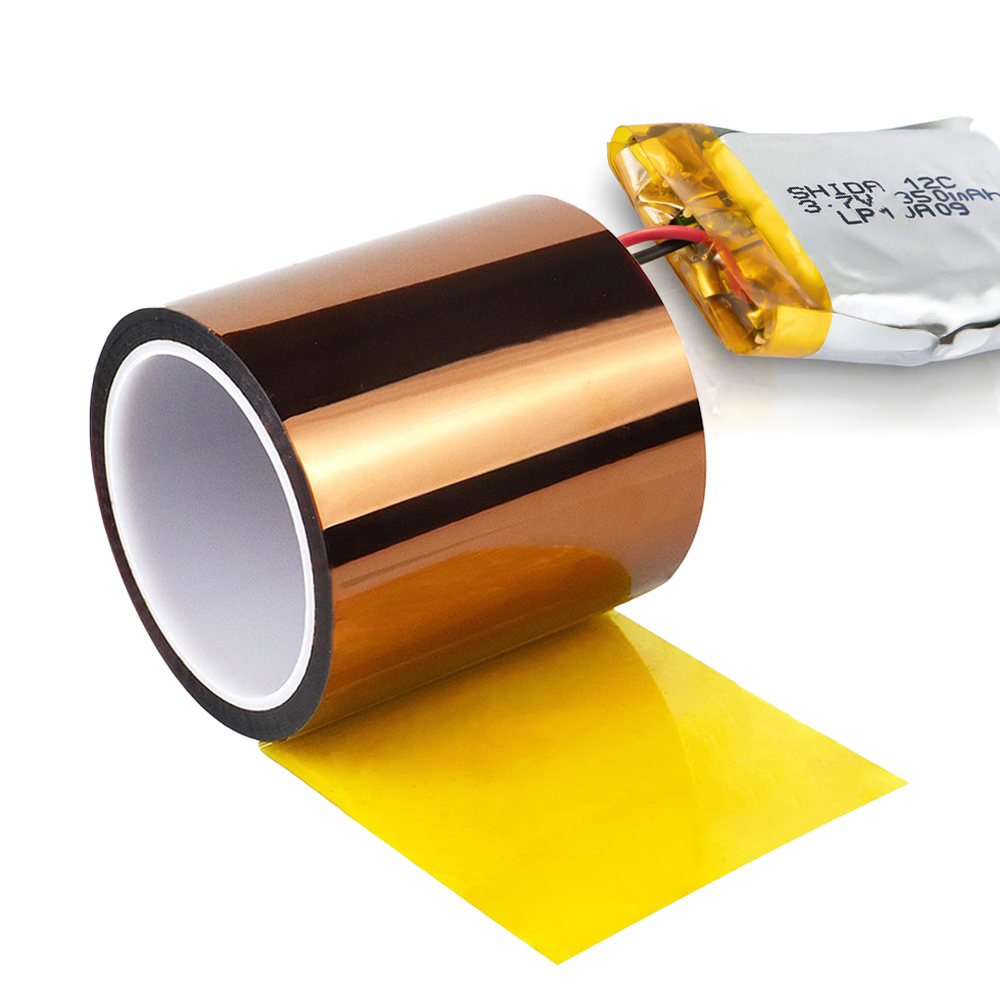

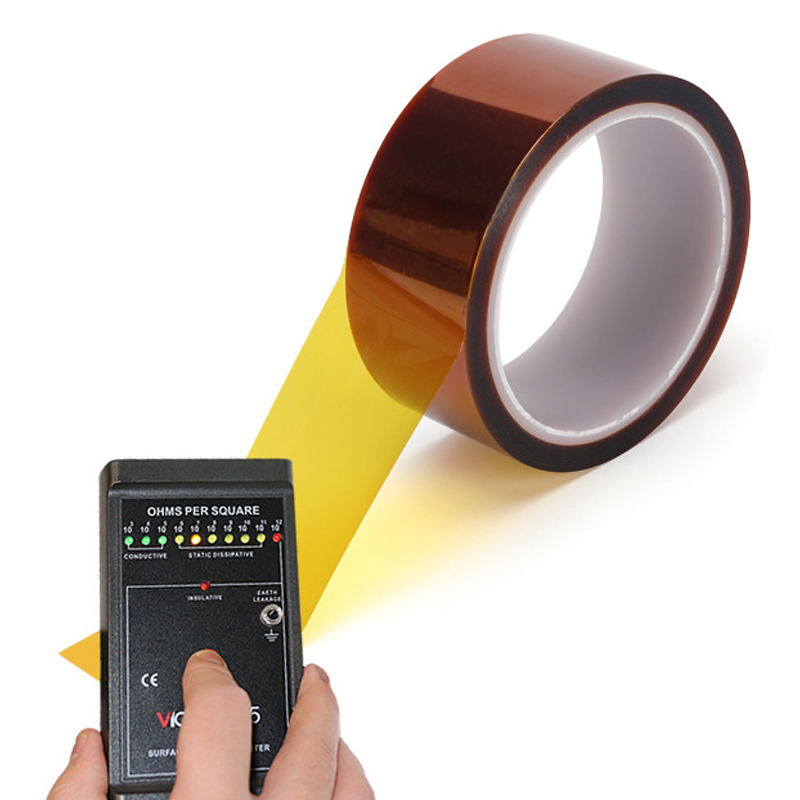

Features: Heat resistance, High Voltage insulation, acid and alkali resistant, low voltage electrolytic

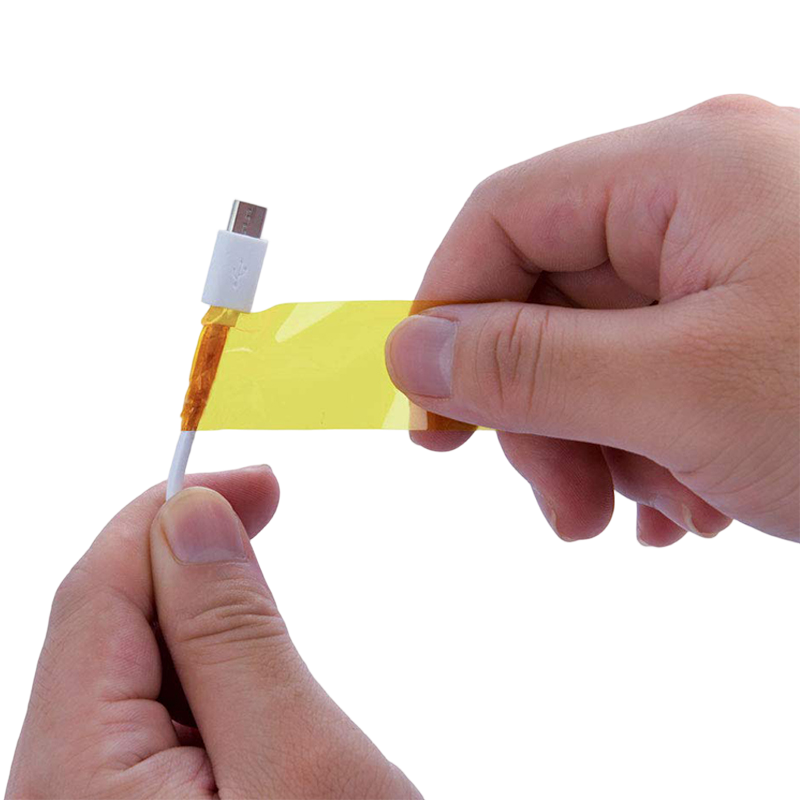

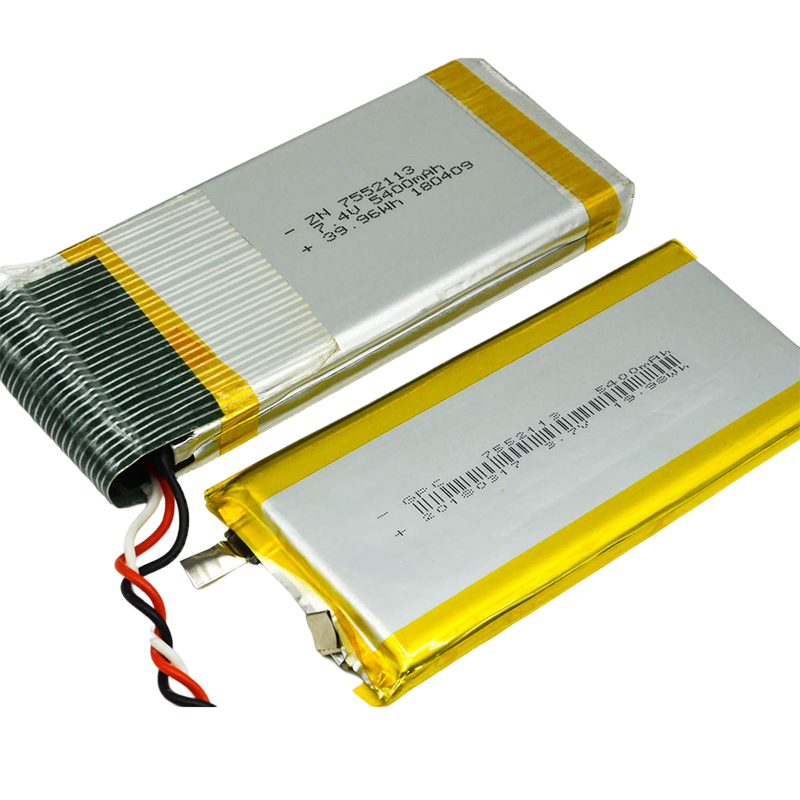

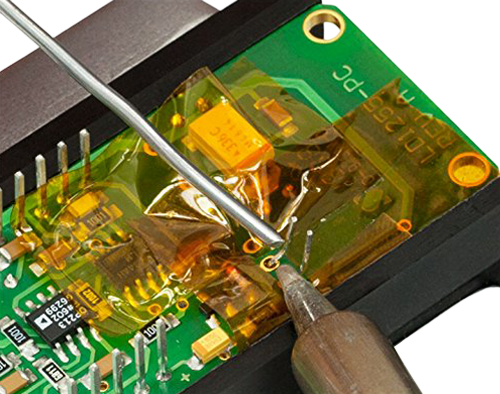

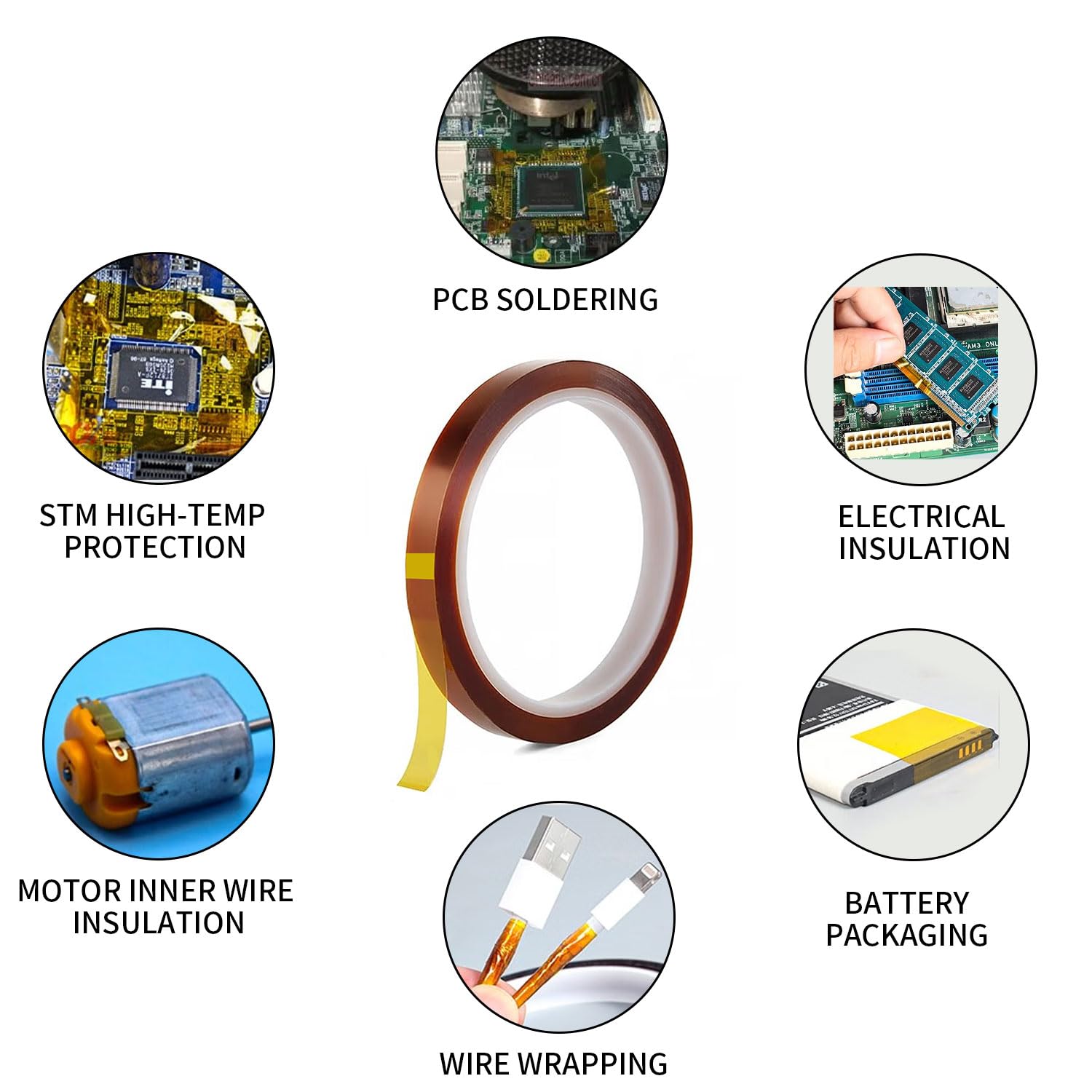

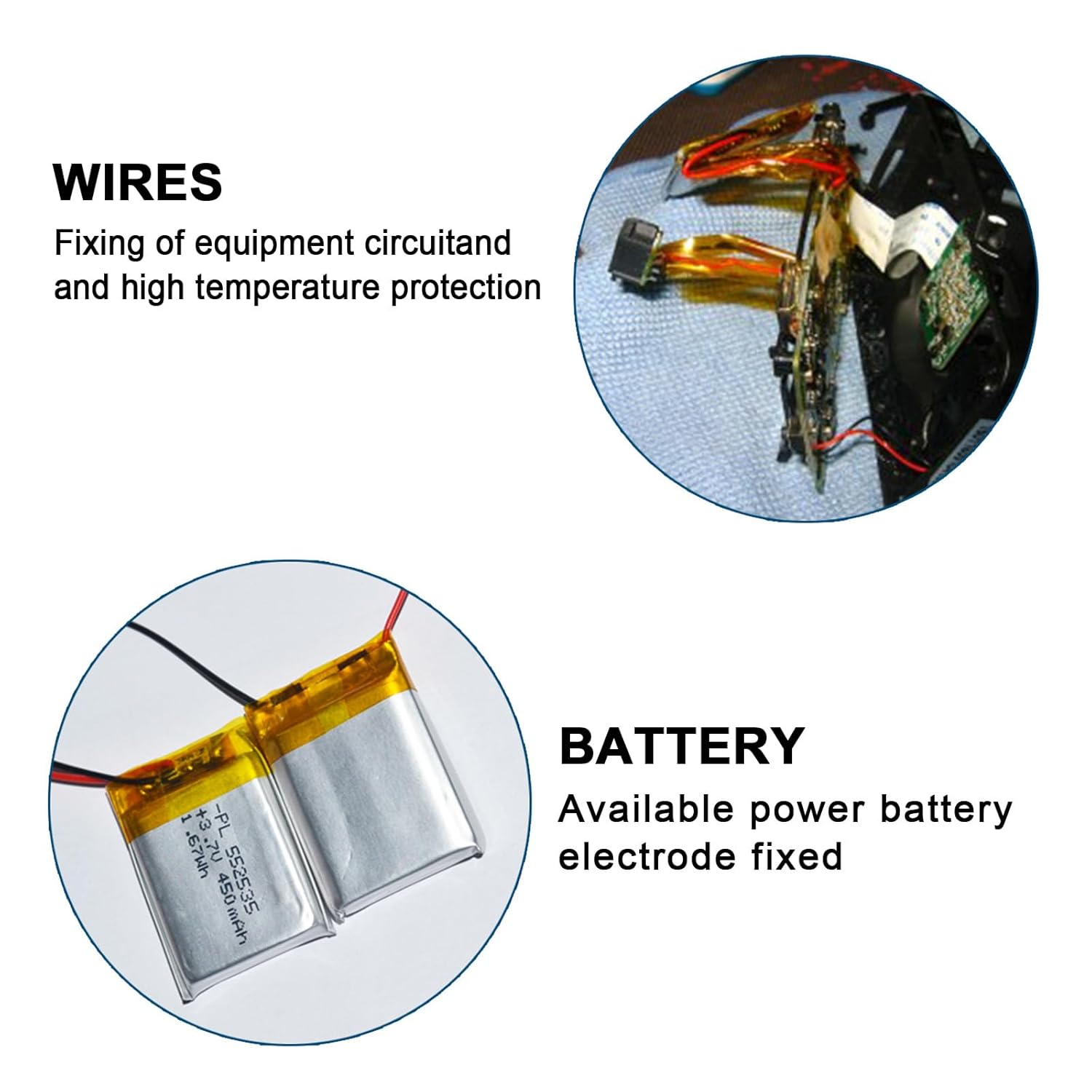

Usage: Protect golden finger when PCB board in soldering tin furnace, insulation of coil, wave-soldering protection, electrical insulation, high temperature resistance, etc. No residue leaving after peeling off.
|
Product Name |
Model No |
Film Thickness (mm) |
Total Thickness (mm) |
Adhesion to Steel (N/25mm） |
Tensile Strength (kg/25mm) |
Elongation at Break（%） |
Temperature Resistance （℃） |
Equivalent |
|
Polyimide tape
|
HY200-1A |
0.015 |
0.030 |
2.8 |
10 |
25-35 |
260 |
|
|
HY200-1B |
0.015 |
0.035 |
3.5 |
10 |
25-35 |
260 |
|
|
|
HY200-2A |
0.025 |
0.042 |
2.5-3.5 |
10-13 |
45 |
260 |
|
|
|
HY200-2B |
0.025 |
0.050 |
4.0 |
10-13 |
45 |
260 |
3M98C-12 |
|
|
HY200-2C |
0.025 |
0.055 |
5.0 |
10-13 |
45 |
260 |
|
|
|
HY200-2D |
0.025 |
0.06 |
5.5 |
10-13 |
45 |
260 |
3M7413D |
|
|
HY200-2E |
0.025 |
0.065 |
6.0 |
10-13 |
45 |
260 |
|
|
|
HY200-2F |
0.025 |
0.070 |
6.5 |
10-13 |
45 |
260 |
3M98C-1 |
|
|
HY200-3A |
0.05 |
0.08 |
6.0 |
20 |
55-65 |
260 |
|
|
|
HY200-3B |
0.05 |
0.10 |
6.5 |
20 |
55-65 |
260 |
|
|
|
HY200-4 |
0.075 |
0.12 |
6 |
28 |
60-65 |
260 |
|
|
|
HY200-5 |
0. 10 |
0.15 |
6 |
36 |
70-75 |
260 |
|
|
|
HY200-6 |
0.125 |
0.18 |
6 |
40 |
80-85 |
260 |
|
|
|
HY200-2DA |
0.025 |
0.06 |
5.0 |
10-13 |
45 |
260 |
|
|
|
HY200-2DB |
0.025 |
0.06 |
5.0 |
10-13 |
45 |
260 |
|
