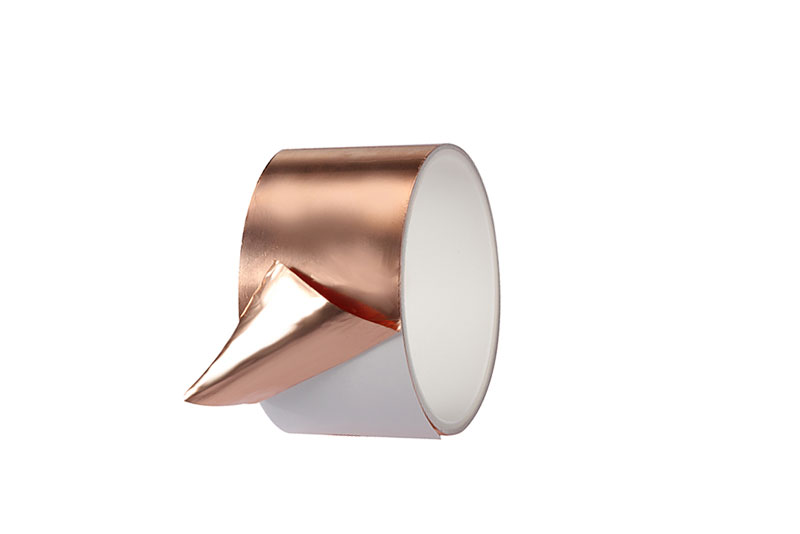

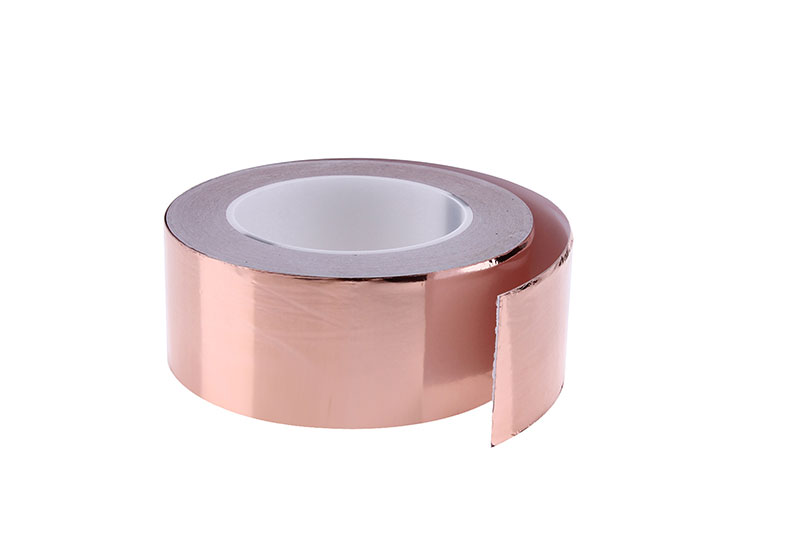

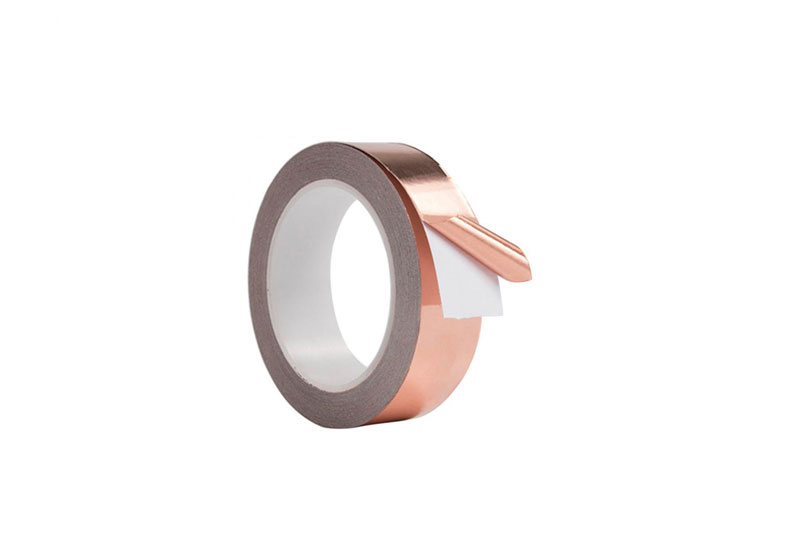

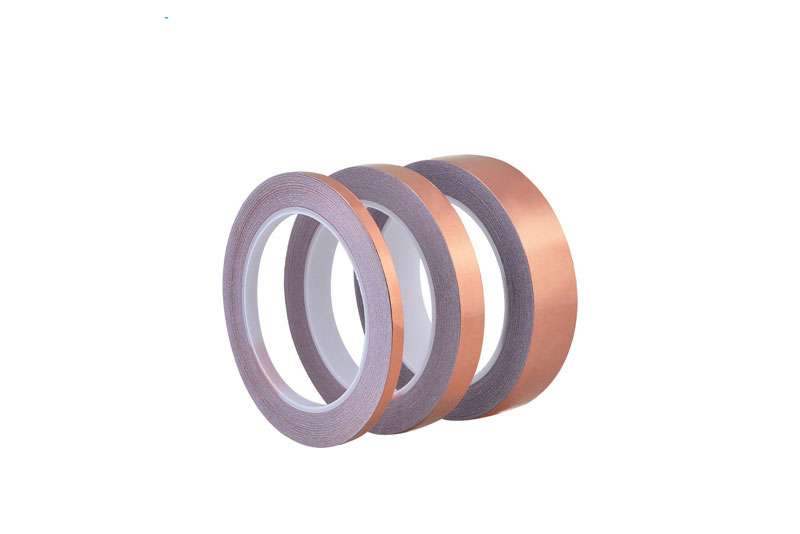

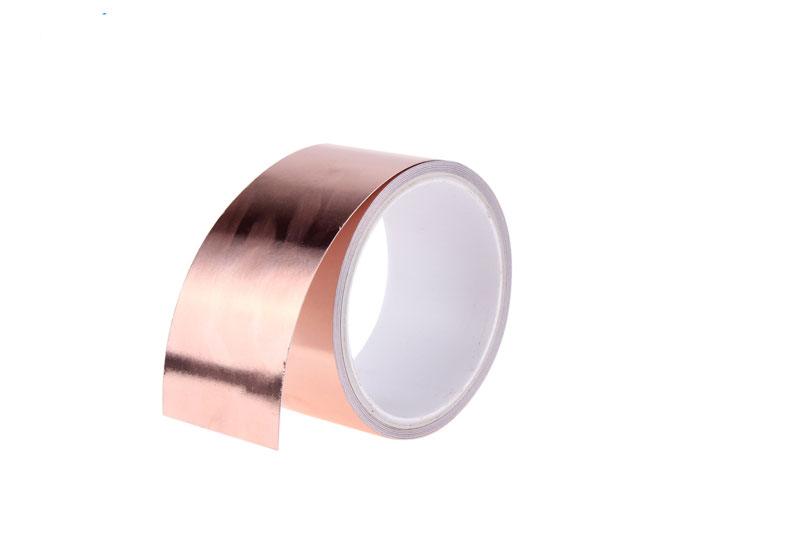

Copper foil tape
Inquiry NowDescription

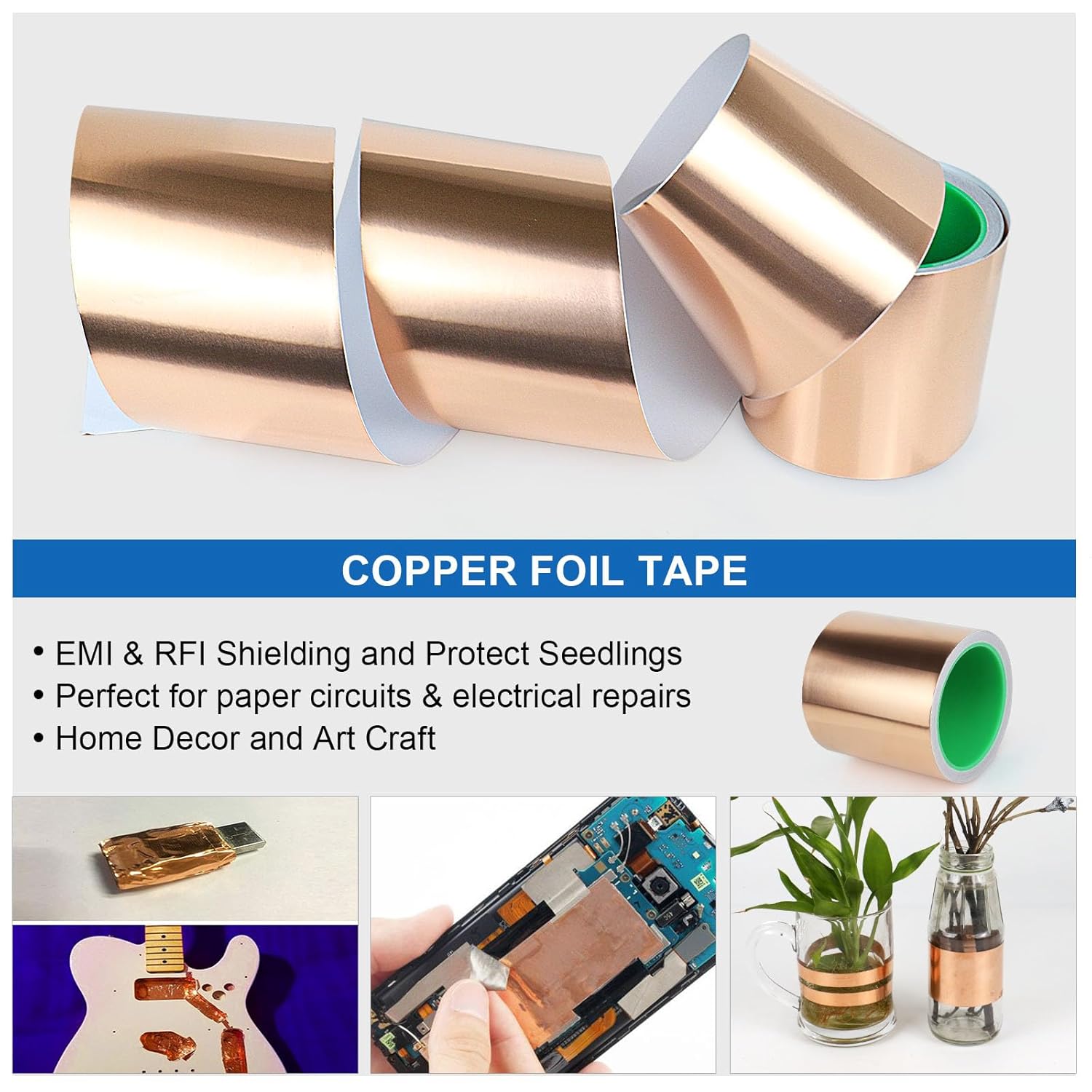

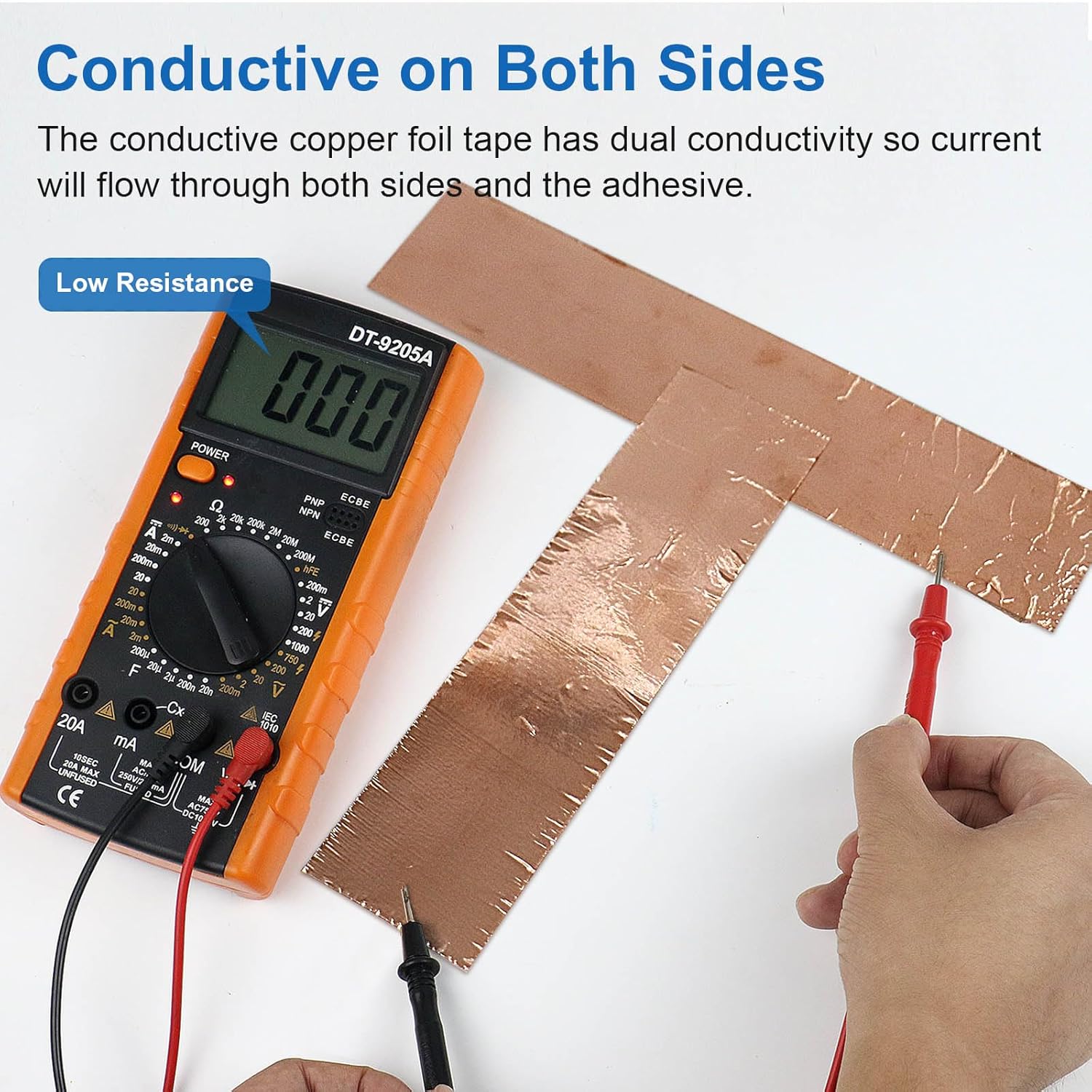

Features: Copper carrier, coating Acrylic conducting glue, it has single-guided and double-guided, also has embossing, electrolysis/nickel plating, eliminating electromagnetic interference. Protecting bodies from electromagnetic wave, avoiding function’s affecting from extra voltage/ electric current.
Usage: Mainly for various Electric products, Covering transformer high frequency transmission or insulating interference of electromagnetic waves and radio waves.can use copper foil packet maylar tape and do copper foil welding wires.
|
Product Name |
Model No |
Carrier Thickness (mm) |
Total Thickness (mm) |
Tensile Strength (N/25mm) |
Elongation at Break（%） |
Glue |
Equivalent |
|
Single-guided Copper foil tape |
HY500-1 |
0.018 |
0.05 |
4.5kg/25mm |
5-6 |
Oily Acrylic glue |
|
|
HY500-2 |
0.025 |
0.06 |
|
||||
|
HY500-3 |
0.035 |
0.07 |
3M1181 |
||||
|
HY500-4 |
0.050 |
0.09 |
|
||||
|
Doubled-guided |
HY500-5 |
0.090 |
0.15 |
|
|||
|
HY500-6 |
0.018 |
0.05 |
|
||||
|
HY500-7 |
0.025 |
0.1 |
|
||||
|
HY500-8 |
0.050 |
0.09 |
|
||||
|
0.090 |
0.15 |
|
|||||
|
HY500-9 |
0.015 |
0.2 |
|
