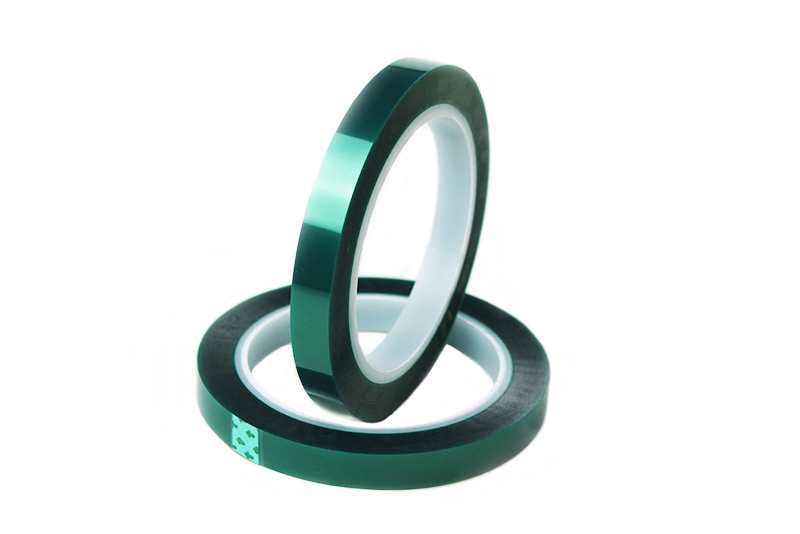

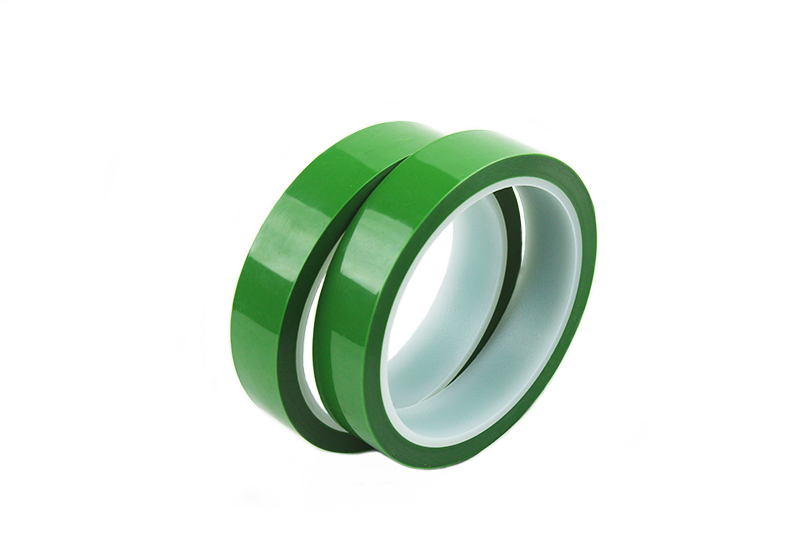

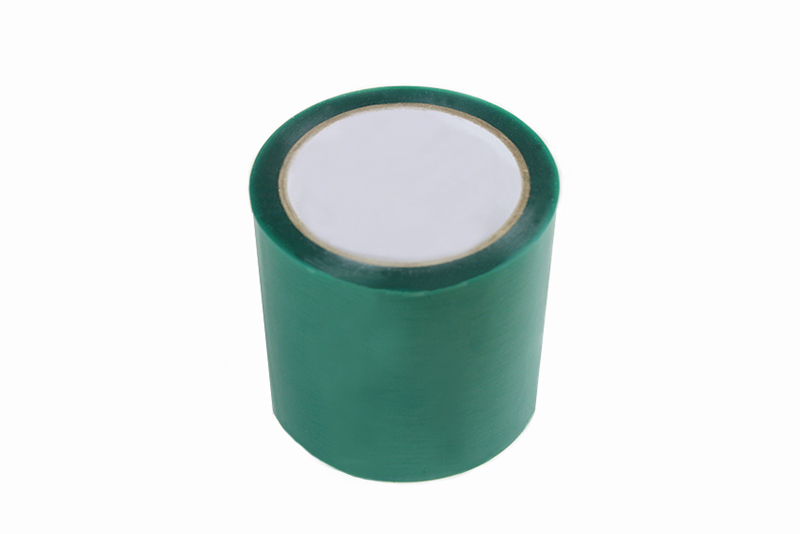

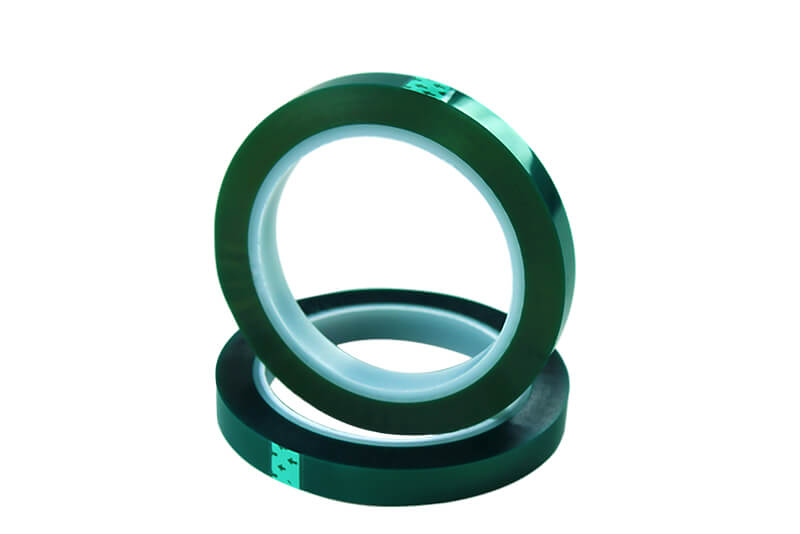

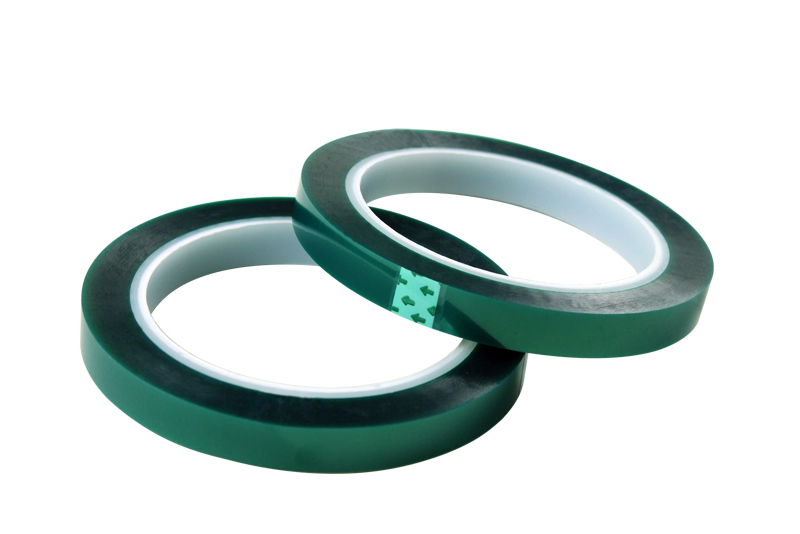

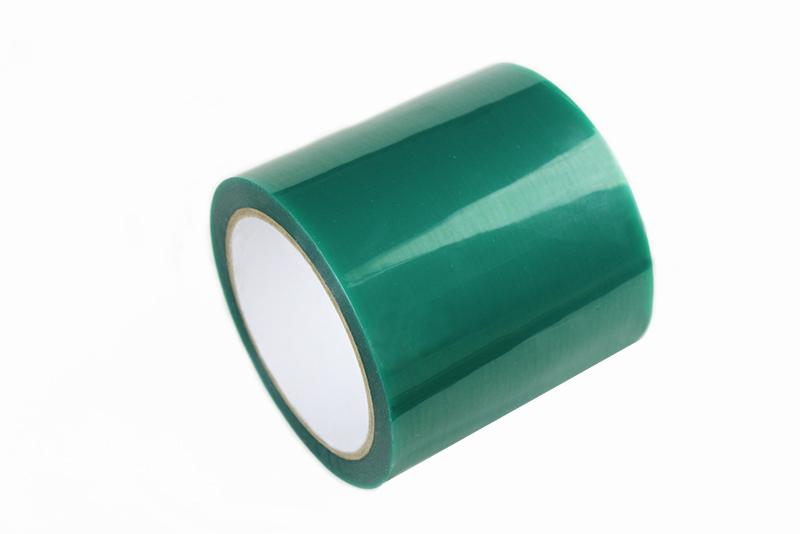

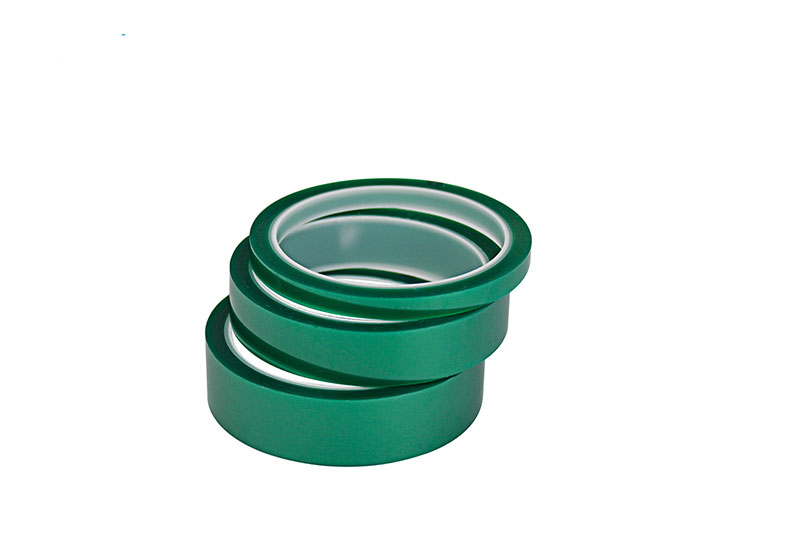

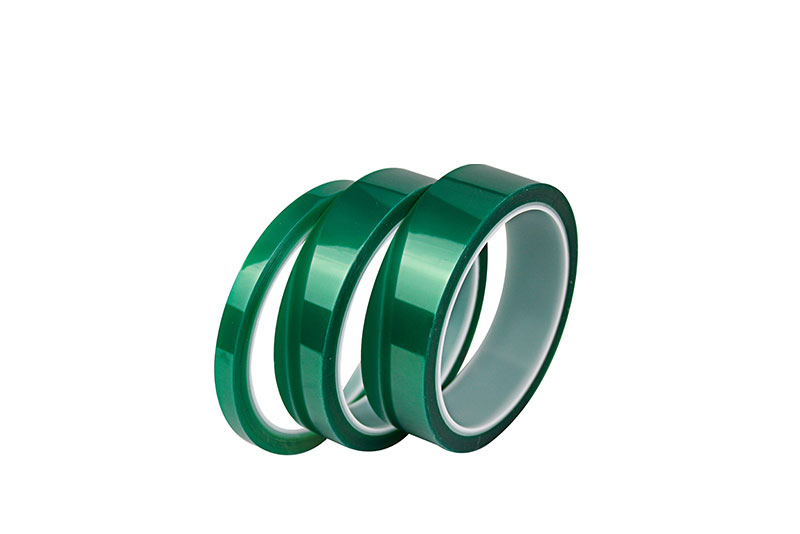

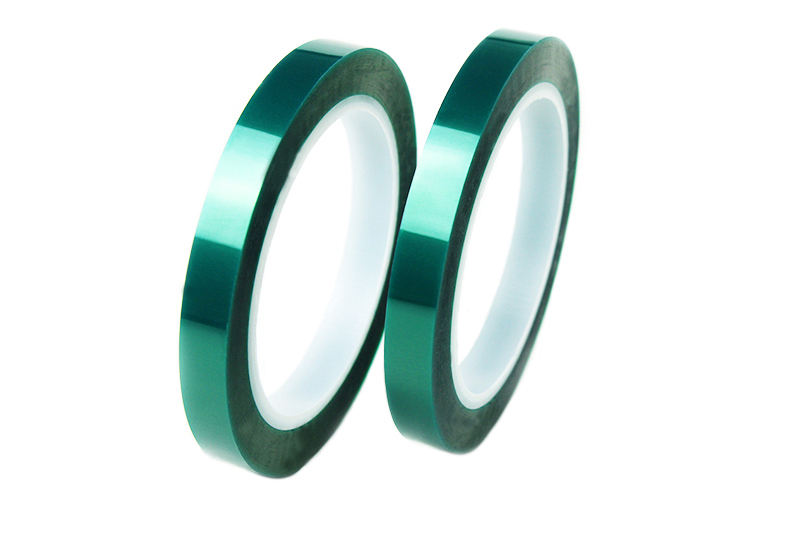

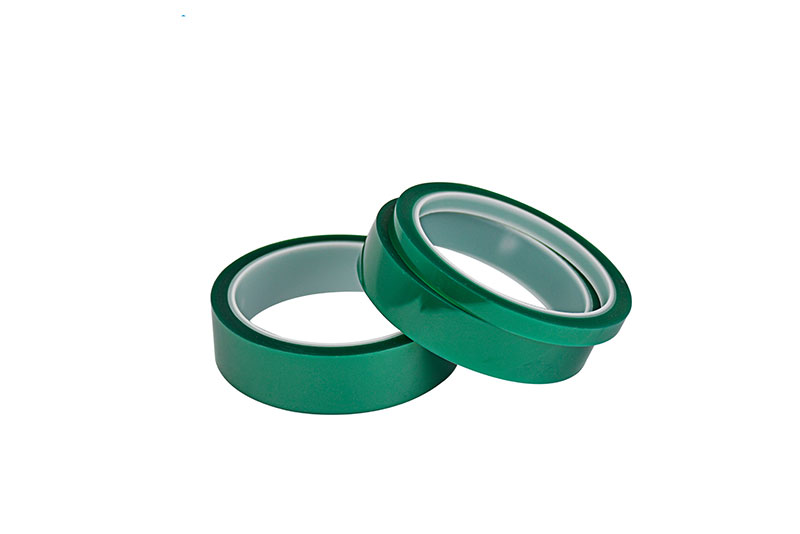

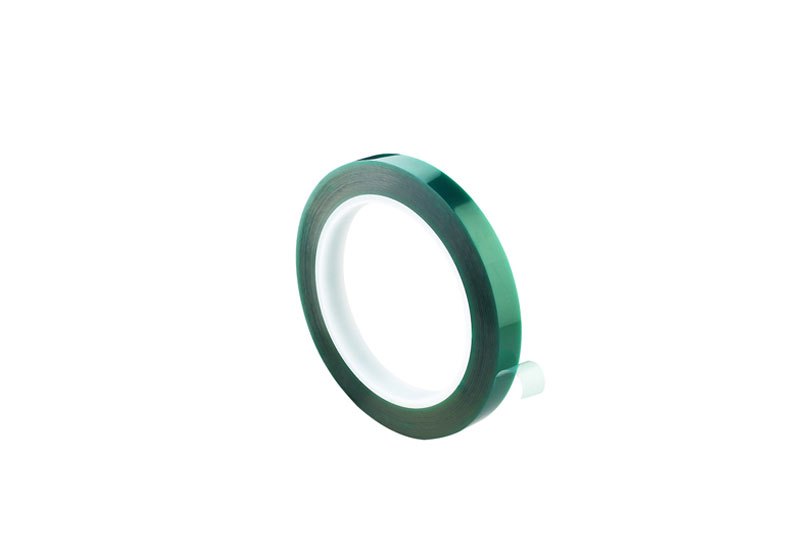

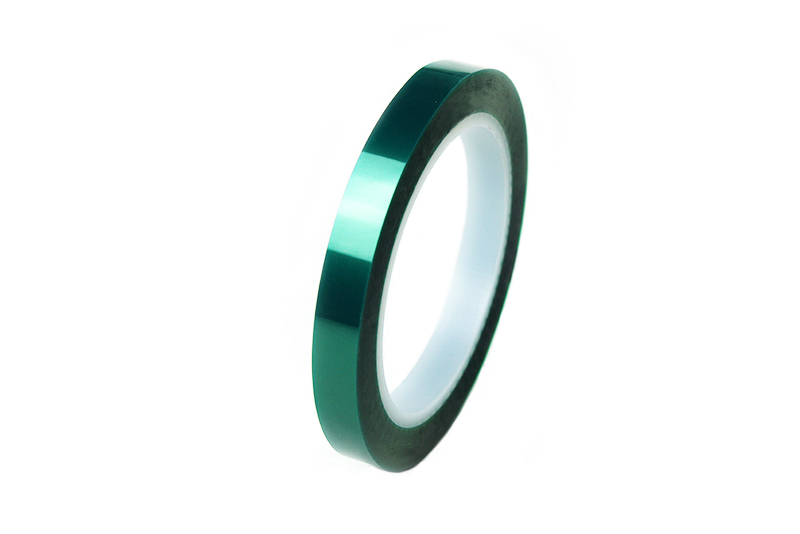

PET high temperature tape

Inquiry Now

Description

Adhesive base: Imported silicone pressure sensitive adhesive

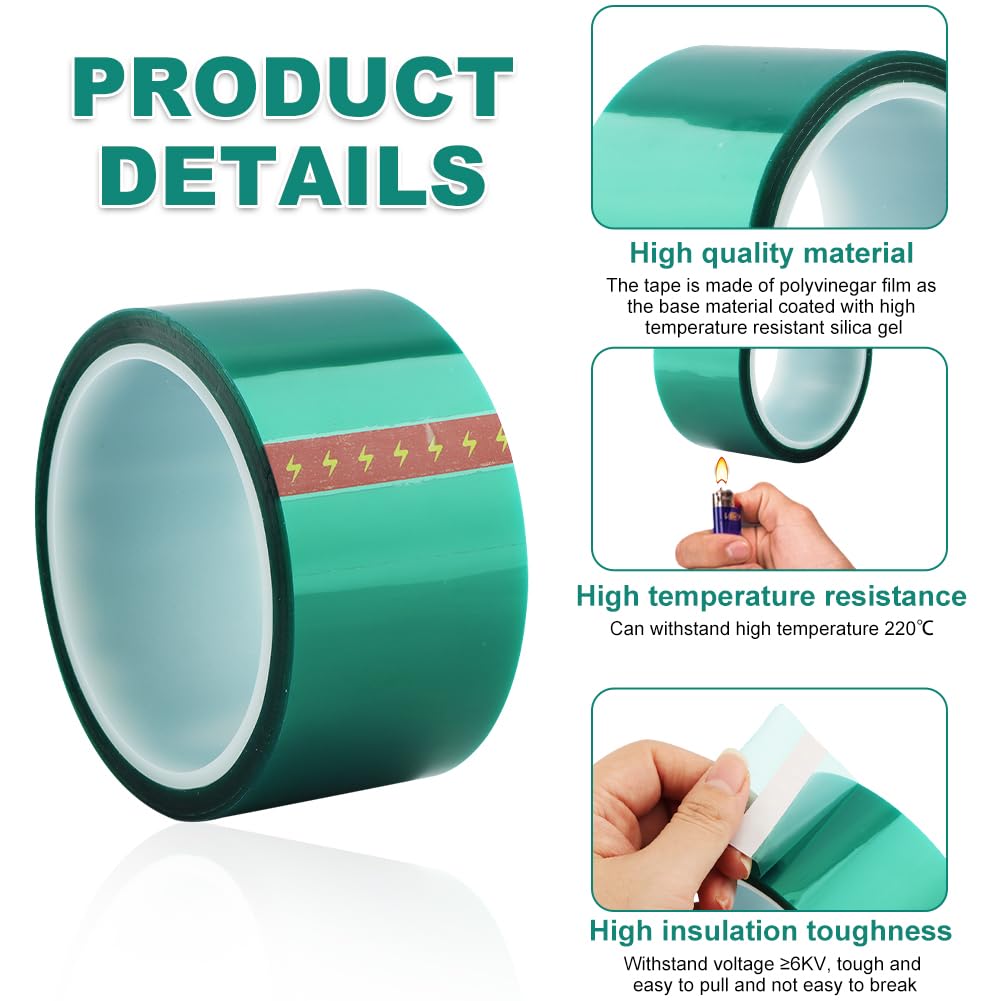

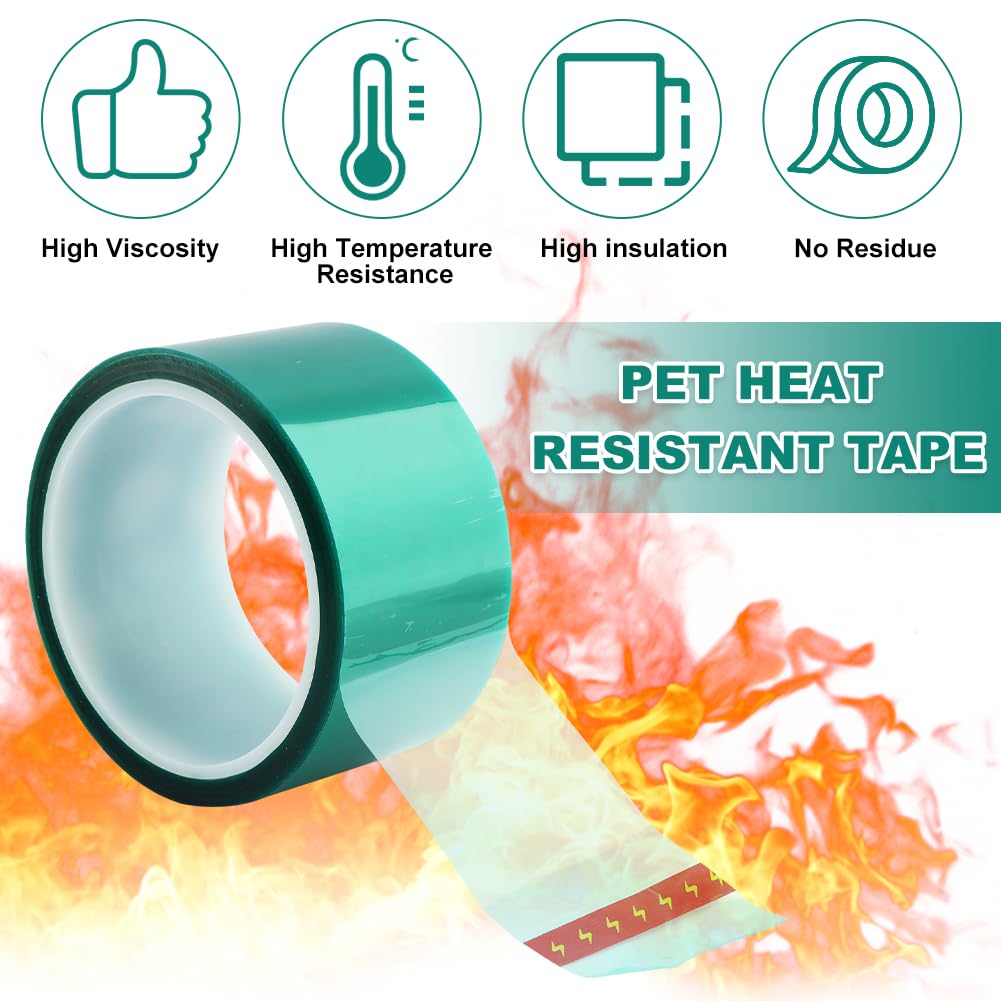

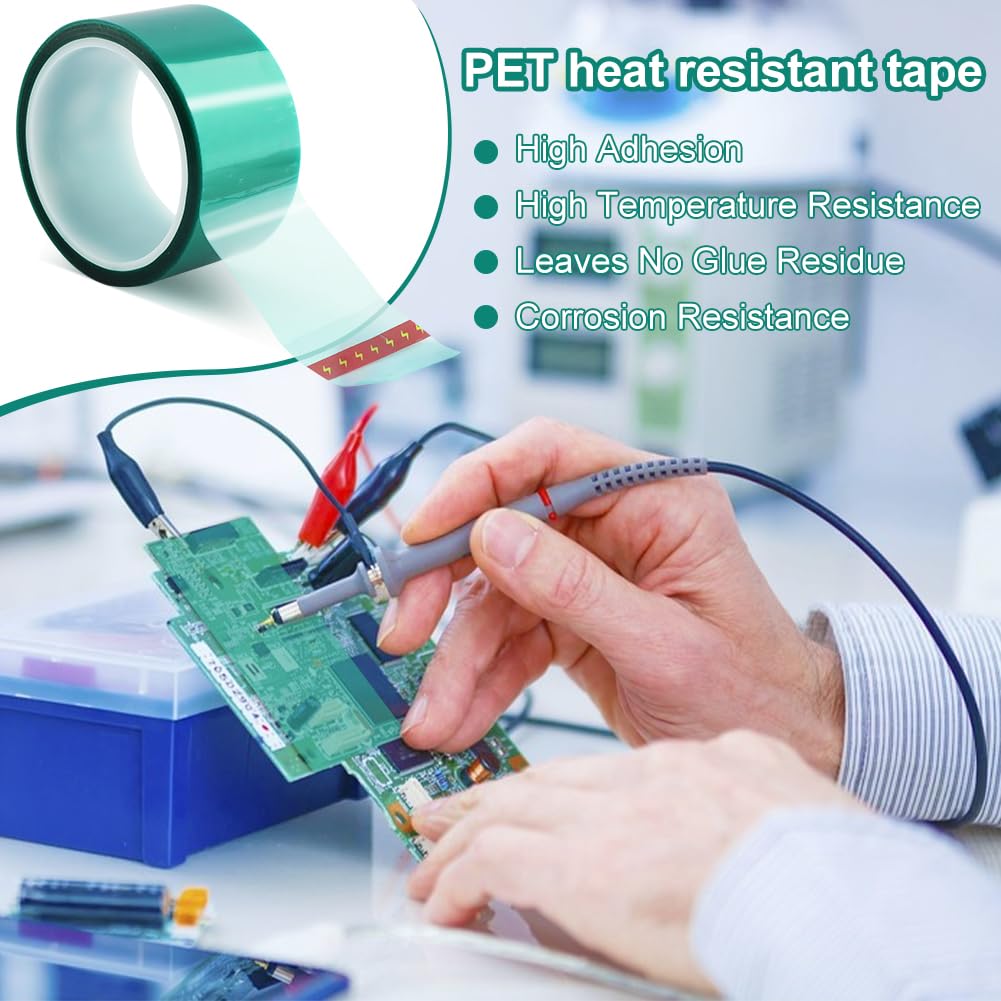

Features: High temperature resistance, insulation, Chemical resistance, high adhesion and soft sticking.There are green, yellow and blue.

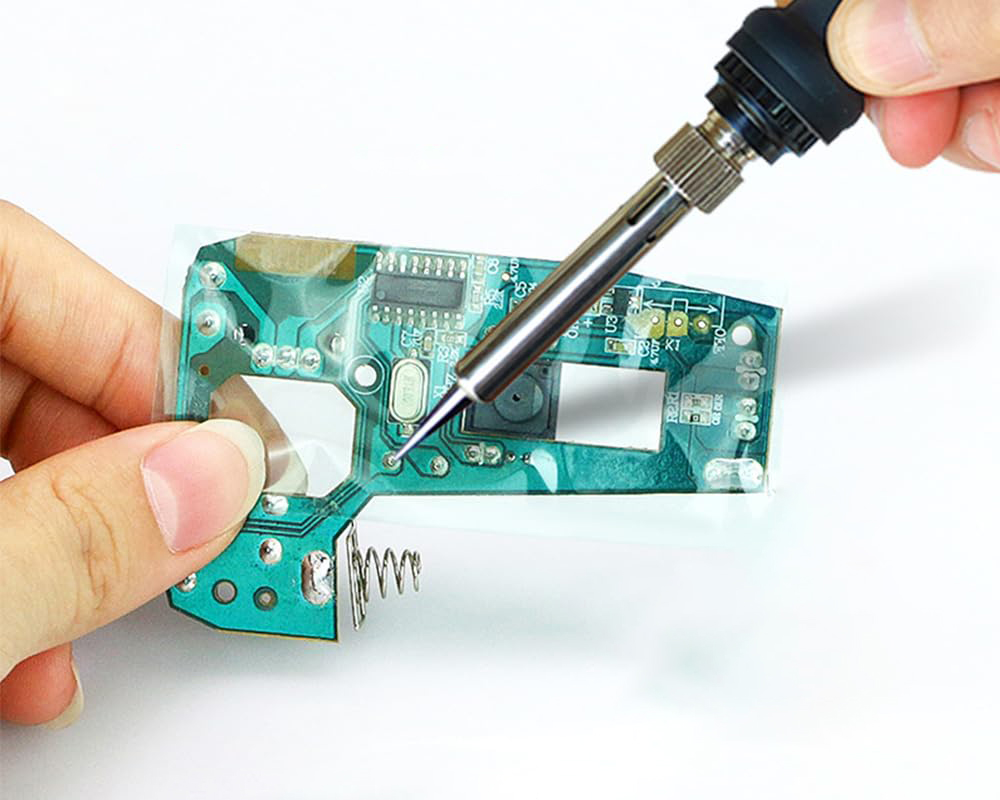

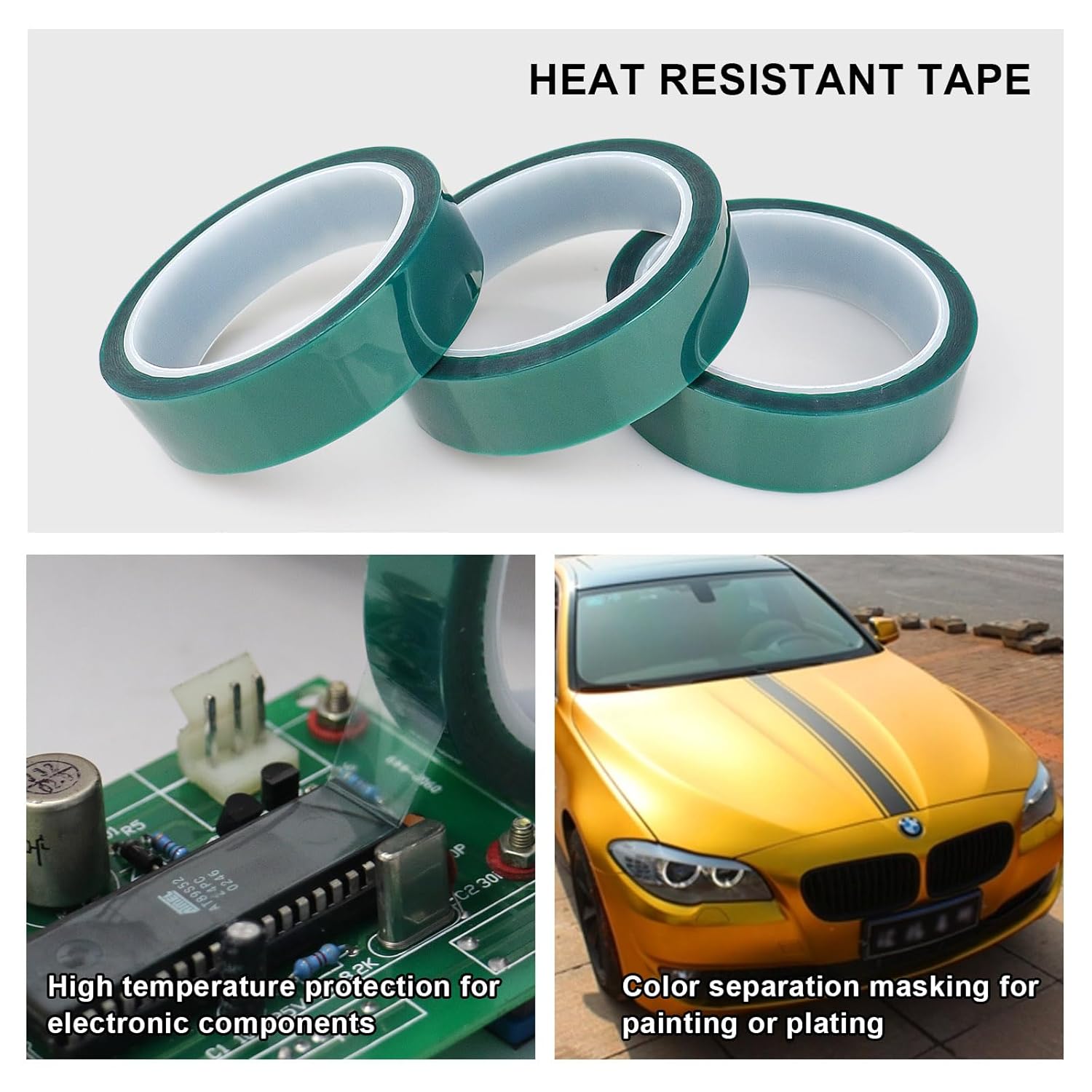

Usage: For industries’ electroplating/ultra high temperature painting and powder coating,optional liner,die-cutting for any shapes.

Product Name

Model  No

Film thickness

(mm)

Total thickness

(mm)

Adhesion to steel

(KG/25mm

Tensile strength

(kg/25mm)

Elongation at break%

Temperature

 resistance

Voltage resistance

(KV)

PET high temperature tape

HY600-1

0.025

0.04

0.3-0.4

185

110-120

180

5.0

HY600-2

0.028

0.045

0.3-0.4

189

120-130

180

5.5

HY600-3

0.025

0.05

0.6-0.7

195

110-120

180

6.0

HY600-4

0.05

0.08

0.5-0.6

180

135-140

180

7.0

HY600-5

0.075

0.1

0.5-0.6

180

145-150

180

9.0

HY600-6

0.075

0.13

0.5-0.6

180

145-150

180

9.0

HY600-7TPP

0.05

0.08

-

170

-

-

-
