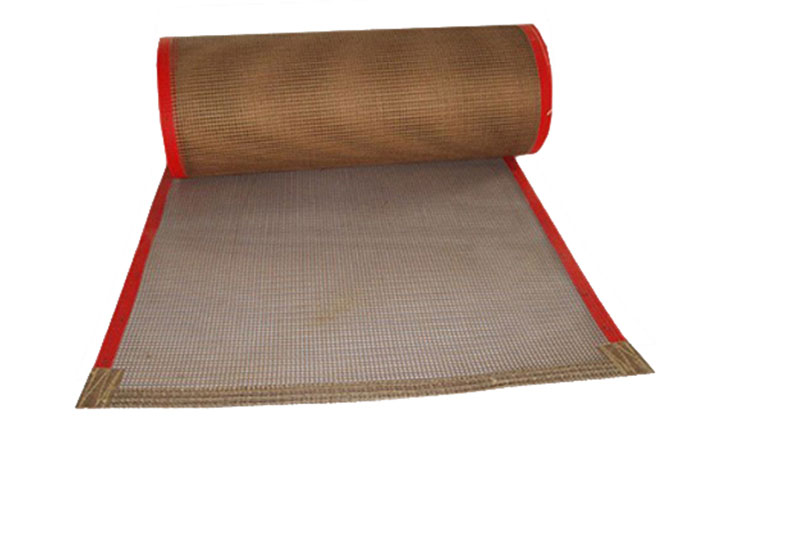

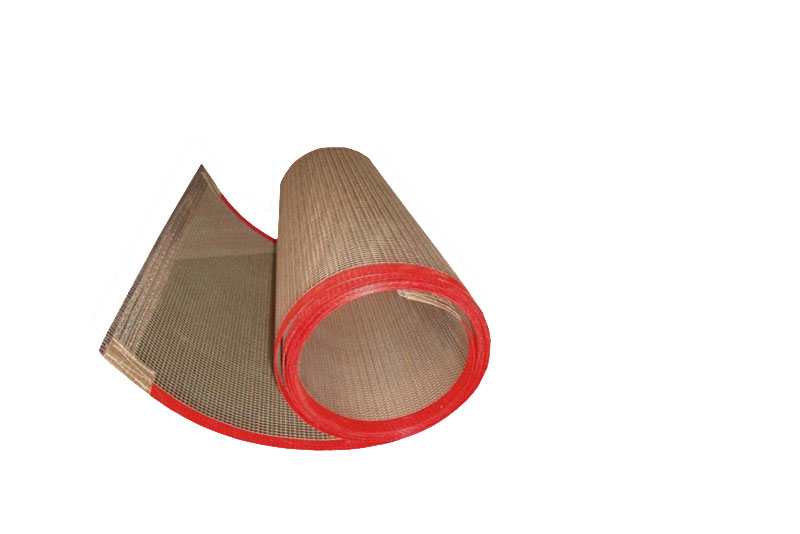

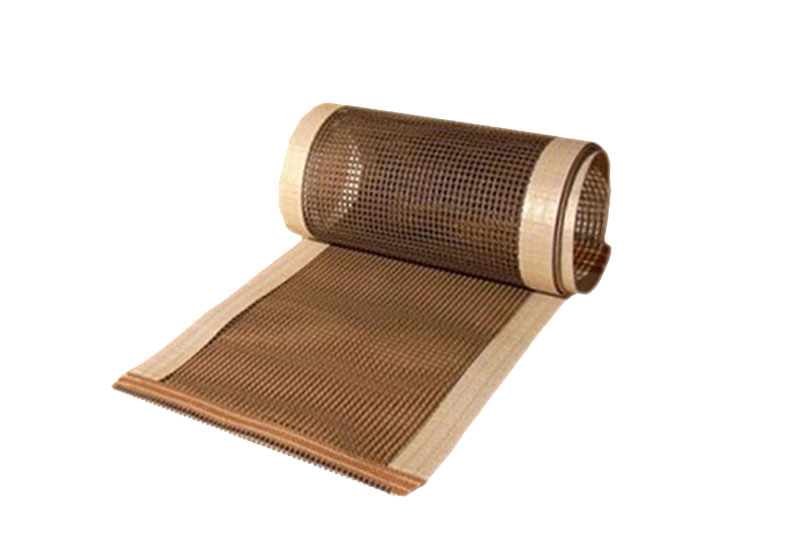

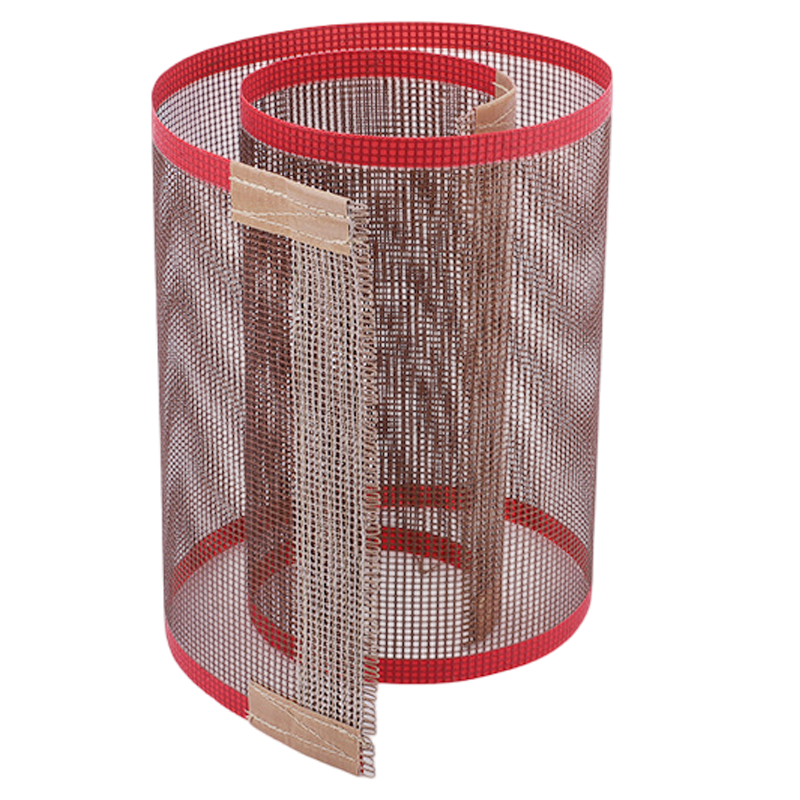

Teflon mesh conveyer belt
Inquiry NowDescription
Features: PTFE emulsion as material, dipping for high performance glass fiber mesh cloth.
Usage: Widely in papermaking / food / environmental protection / printing dyeing/clothing/ chemical industry/glass/medicine/ electronics/ insulation/ grinding wheel section/ machinery and other fields.
|
Product Name |
Model No |
Mesh size |
Material |
Thickness （mm） |
Weight |
Heat Resistance （℃） |
Max width |
Tensile strength |
|
Teflon mesh conveyer belt |
HY661-1 |
1*1mm |
fiberglass |
0.5 |
370g/㎡ |
-70～320℃ |
4000 mm |
310/290N/cm |
|
HY661-2 |
2*2mm |
fiberglass |
0.7 |
450g/㎡ |
350/310N/cm |
|||
|
HY661-3 |
4*4mm |
fiberglass |
1.2 |
600g/㎡ |
895/370N/cm |
|||
|
HY661-4 |
4*4mm |
fiberglass |
1.0 |
500g/㎡ |
395/370N/cm |
|||
|
HY661-5 |
0.5*1mm |
fiberglass |
0.5 |
420g/㎡ |
310/290N/cm |
