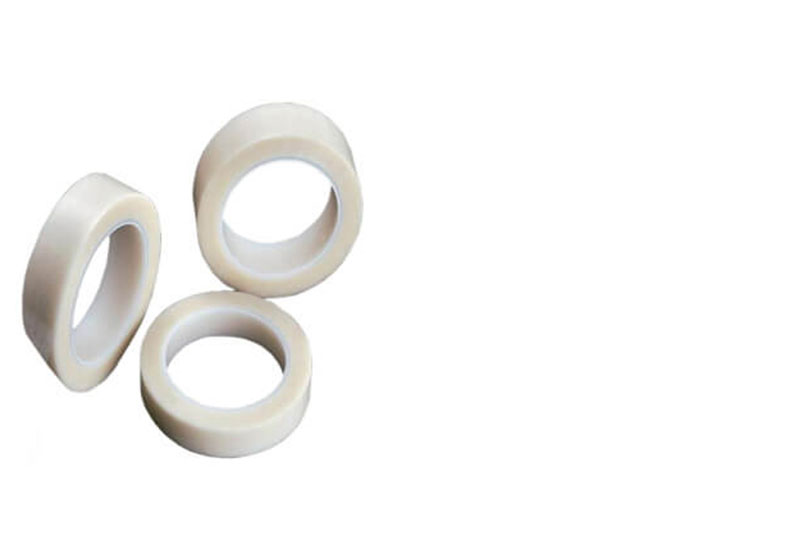

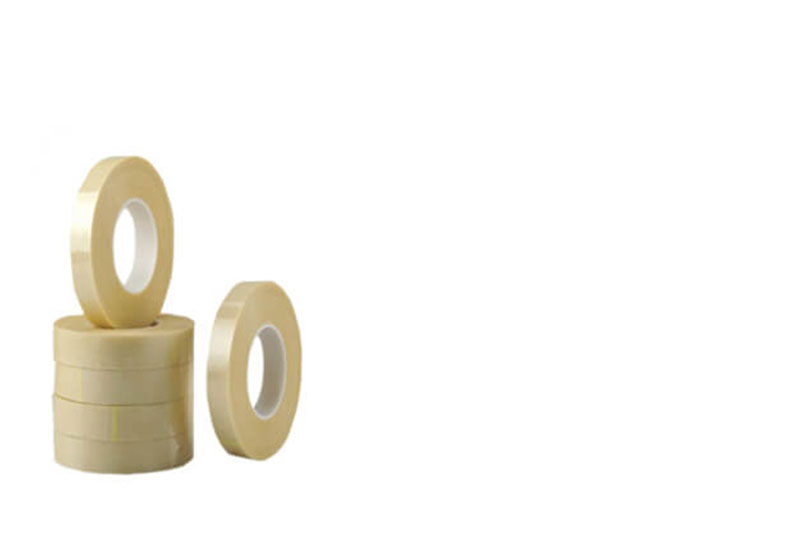

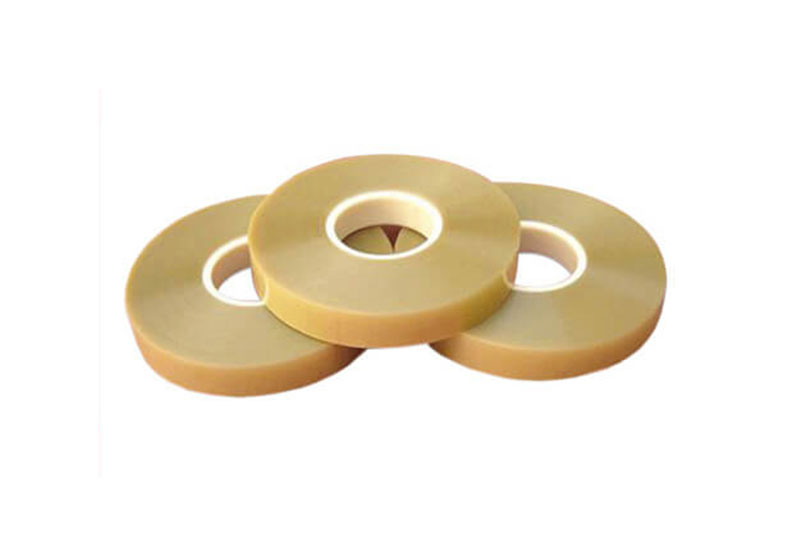

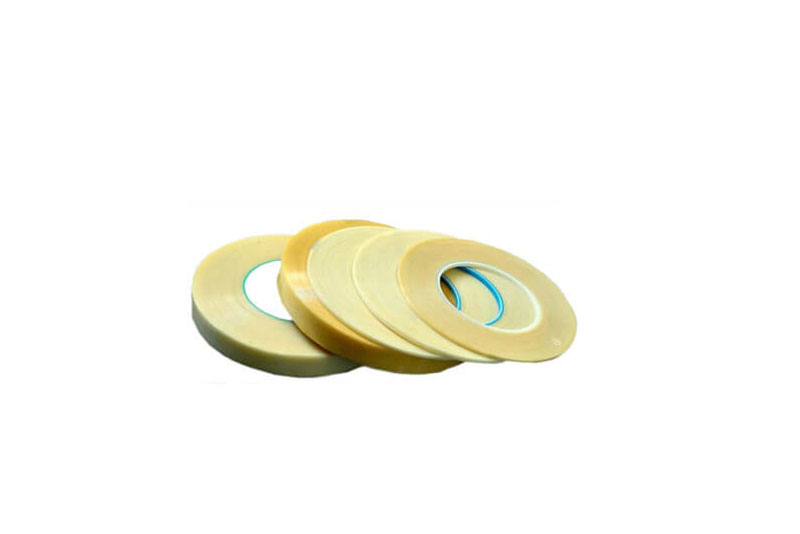

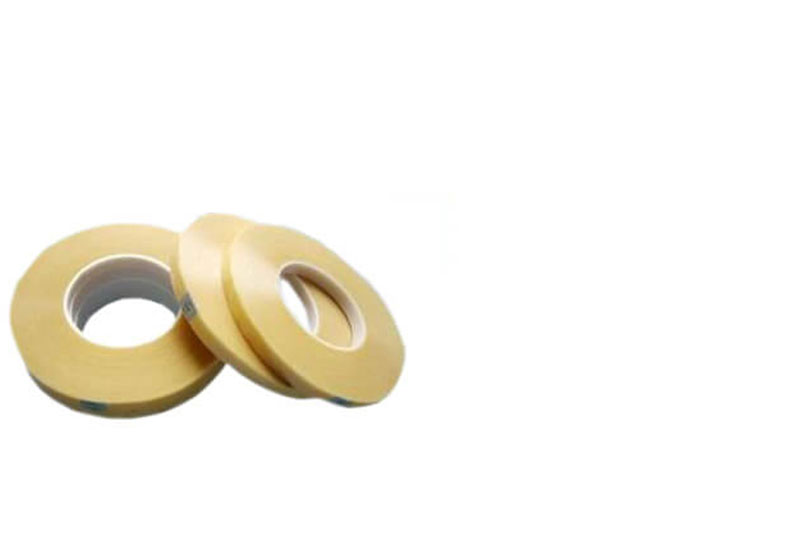

Non-woven fabric tape

Inquiry Now

Description

FeaturesNon-woven fabric retaining wall adhesive tape is composed of sticking non-woven fabric on polyester film substrate and coating a layer of acrylic adhesive with excellent performance on one side of the non-woven fabric. It generally has one, two or three layers of thickness for customers to choose from. The color of non-woven retaining wall tape is brown and white, and its main components are non-woven fabric and rubber (or acrylic glue). Generally, it has a temperature resistance of 130and a pressure resistance of 5kV, and the product has good adhesion and excellent solvent resistance.

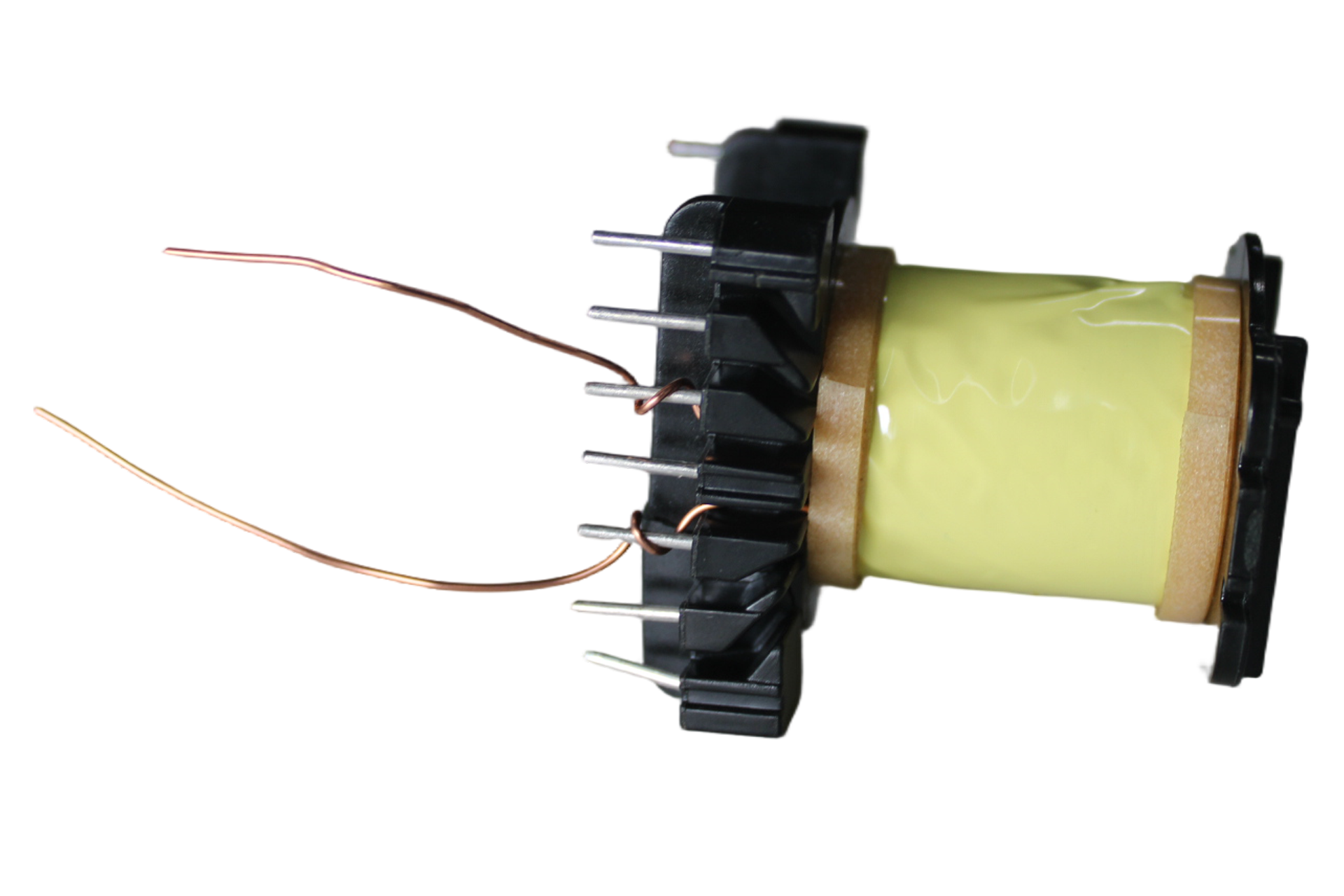

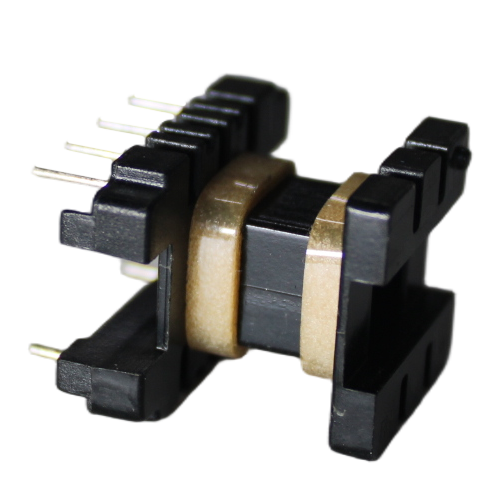

UsageIt is generally mainly used for insulation of UPS power supply, dry-type transformer, high-temperature power frequency transformer, gasket (high temperature) and microwave oven transformer. Retaining wall adhesive tape is mainly used for insulation wrapping or retaining wall in electronic industries such as transformers, electronic coils and motors.

Product Name

Name

Backing

Adhesive

Color

Thickness (mm)

Adhesion to Steel

N/10mm

Voltage

resistance

(KV)

Equivalent

Rubber non-woven tape





HY300-1

PET



















Rubber







Beige







0.14

4.4





5.5

3M44

HY300-2

0.28

10

3M44D-A

HY300-3

0.42

14

3M44T-A

non-woven tape











HY310-1

Acrylic acid













White













0.1515G

4.2











5.0













HY310-2

0.2020G



HY310-3

0.2525G



HY310-4

0.2840G



HY310-5

0.3565G



HY310-6

0.4285G
